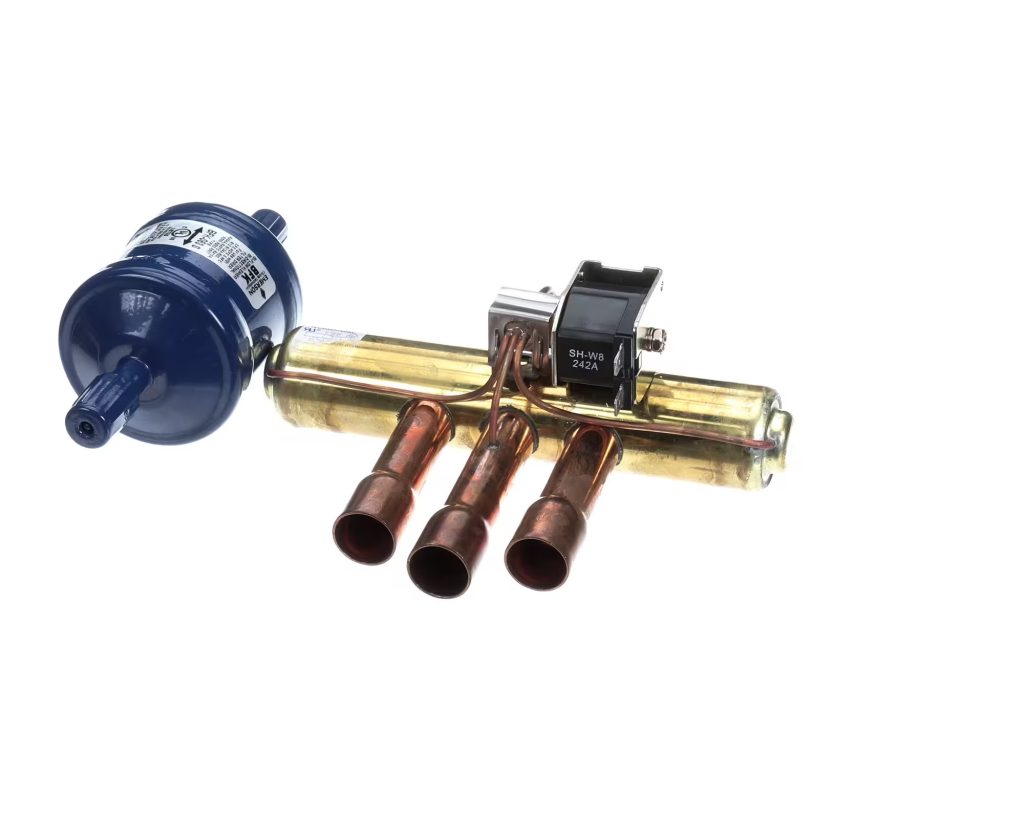

0151R00069SP – REVERSING VALVE W/ SOLENOID COIL & DRIER (3/4″ x 1/2″)

Goodman / Amana heat pump reversing valve service pack, supplied with the solenoid coil and a filter drier. Line sizes vary between listings for this pack, so verify the tube stubs against the valve you are removing before ordering.

Supplied as a complete service assembly — valve, solenoid coil and bi-flow filter drier. Supersedes 0151M00019S. Published application data. Always match the full model and serial number on your unit before ordering.

Specs

• BrandGoodman / Amana
• TypeReversing valve service pack
• IncludesReversing valve, solenoid coil, filter drier
• Connections3/4 in. x 1/2 in. (per our stock record)
• Data SourceOTP stock record - not manufacturer-verified

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• EF17BZ251
• 0151R00069S

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• GPH1324H4, GPH1330H4
• GPH1424H41 (CA, DA, DB, DC, DD)
• GPH1430H41 (CA, DB, DC, DD)
• GPH1424M41, GPH1430M41 (AA, AB)
• GPH1624H41, GPH1630H41, GPH1636M41 (AA, AB)
• GPH1624M41, GPH1630M41 (AA, AB)
• GPD1424060M41, GPD1430080M41, GPD1436080M41 (AA, AB)
• APH1324H4, APH1330H4 (and -1 variants)
• APH1524M41, APH1530M41 (AB, BA, CA)
• WPH4324AMAA / AMAB, WPH4330AMAA / AMAB
• WGPH4524AMAB, WGPH4530AMAB
• WGHP4336AAA, WGHP4430AAE
• GSZ130361 (BE, BF), GSZ140191, GSZ140251
• GSZ140301K (A–D, F), GSZ140361K (A–D)
• GSZ160181B (A–E)
• GSH130301AB, GSH130311 (AB, AD)
• ASZ130361AA, ASZ160241 (AA–AD), DSZ160241AA

My heat pump only blows cool air in heating mode. Is the reversing valve bad?

Maybe, but check the coil first. The solenoid coil slides off the valve body, is sold by itself, and fails far more often than the valve does. Pull it, ohm it, and confirm you have 24 volts at the coil when the thermostat calls for the mode that energizes it. Open coil or missing voltage means you are buying a coil, not a valve body and a day of brazing.

How do I tell a dead coil from a stuck slide?

With the system running, pull the O or B wire and see whether the valve shifts. If you hear it thunk over and the pressures move, the coil and the control wiring are fine. If the coil is energized and nothing happens, hold a strong rare earth magnet against the body and watch whether the internal slide moves not at all, partway, or all the way. That separates a mechanical problem from an electrical one.

The valve shifts, but the heat pump is weak in both modes. Now what?

Check for internal bypass. Compare temperatures hot line to hot line and cold line to cold line at the valve. More than about 3 to 5 degrees difference means refrigerant is leaking across a slide that is not seating, and the body has to come out.

Is O energized in cooling or B in heating?

Depends on the brand, and it is worth confirming before you condemn anything. Most manufacturers energize O in cooling. Some older systems energize B in heating instead. Read the diagram on the unit, not the wiring the last guy left.
