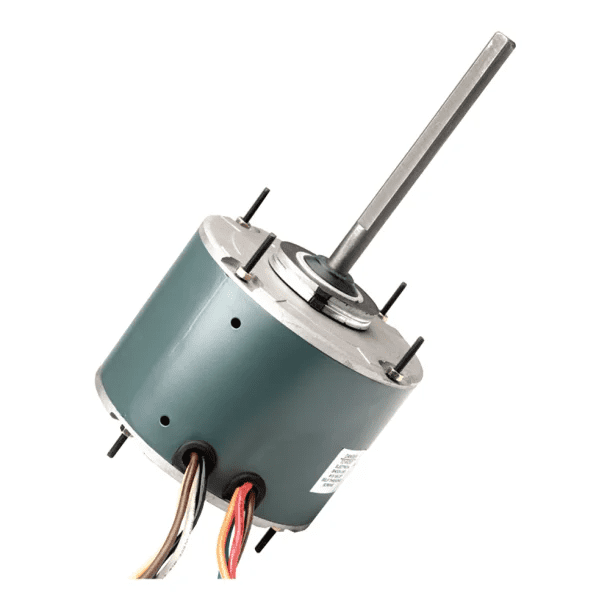

1874 – CONDENSER MOTOR (1/4-1/8 HP, 825 RPM, 5MFD)

If your AC fan isn’t spinning or spins slowly, the condenser fan motor is likely the problem. This multi-horsepower motor (1/4 and 1/8 HP) runs at 825 RPM and covers multiple applications. Reversible rotation and standard 48-frame mounting.

Specs: 1/4-1/8 HP, 825 RPM, 208-230V, 48-frame, 5 MFD or 7.5 MFD capacitor, reversible rotation

Replaces: 1874, K55HXCLP-1470, K55HXCLP1470, WG840459

Fits: Universal 48-frame condenser units requiring 1/4 or 1/8 HP at 825 RPM. Compatible with Goodman, Carrier, Rheem, Trane, and other brands.

Need help? See our AC Fan Not Spinning Guide.

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypePSC single-speed condenser fan motor
• Horsepower1/4-1/8 HP
• RPM825 RPM
• Required Run Cap5 MFD

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 1874

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• Universal aftermarket replacement for PSC condenser fan motors with matching HP / RPM / cap requirement
• Common applications: 13-16 SEER residential condensers: Rheem / Ruud RA13/RA14/RA16, Goodman GSX13/14/16, Trane XR13/14/16, Carrier / Bryant 13-16 SEER, York / Coleman entry- and mid-tier condensers, Lennox 13-16 SEER
• Verify HP, RPM, frame size (42Y/48Y), shaft diameter, and rotation direction match before installing

Why didn't my condenser fan motor last?

9 times out of 10, a weak run cap drives the motor to fail. The cap loses MFD over time, the motor pulls higher amps, the bearings overheat. Replace the cap every 5-7 years and the motor lasts much longer.

How do I match HP, RPM, and frame size?

HP and RPM come off the data plate. Frame size (42Y/48Y) describes the mount dimensions — 42Y is the smaller frame, 48Y is larger. Shaft diameter is usually 1/2" but verify. Rotation (CW/CCW from shaft end) MUST match your existing setup. Bring the old motor in — we'll match every dimension at the counter.

What does '2-speed' mean on a condenser motor?

2-speed condenser motors have two RPM ranges (typically 850 and 1075). The control board chooses based on stage call. Useful for 2-stage condensers — won't help on a single-stage system.

How long does a condenser fan motor last in Dallas?

6-10 years typical. Open-frame motors exposed to rain, sprinkler overspray, and afternoon sun fail faster. Sun-side units typically die first.
