How to Test a Transformer With a Multimeter
If your HVAC system won’t turn on at all — no fan, no heat, no cooling — the problem might be a bad transformer. The transformer steps down your home’s 120V or 240V power to the 24V that runs the thermostat and control circuits. When it fails, everything downstream goes dead.
The good news: testing a transformer is one of the easiest electrical checks you can do with a basic multimeter.
What You’ll Need
A multimeter that reads AC voltage is all you need. Set it to the VAC setting (usually marked with a wavy line ~). You don’t need anything fancy — a $20 meter from the hardware store works fine.
Step 1: Check the Input Side
With the power ON, carefully measure the voltage across the two input wires (the high-voltage side). You should read somewhere around 120V or 240V depending on your system. If you’re reading 0V here, the problem is upstream — check your breaker, disconnect box, or door safety switch.
Step 2: Check the Output Side

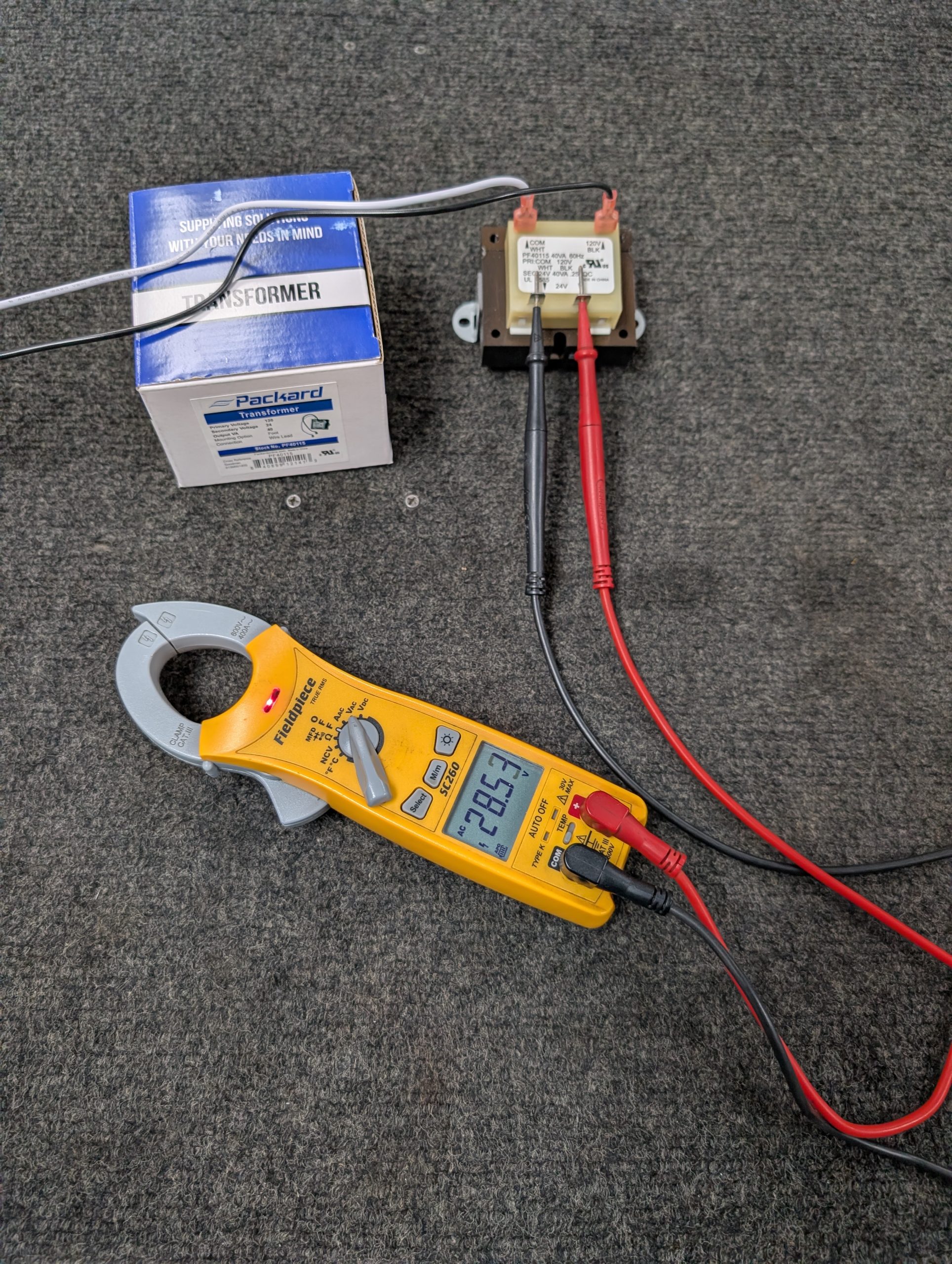

Now measure across the two output terminals (the 24V side). A healthy transformer should read between 24V and 28V. If you’re getting the right voltage in but nothing (or way too little) coming out, the transformer is bad and needs to be replaced.
Common Signs of a Bad Transformer
A buzzing or humming sound from the transformer is often the first warning sign. You might also notice a burning smell, or the transformer may feel extremely hot to the touch. In some cases, a bad transformer will blow the 3-amp or 5-amp fuse on the control board repeatedly.
Replacement Is Straightforward
Transformers are universal as long as the voltage ratings match. Most residential systems use a 40VA or 75VA transformer. Bring your old one into the store — we’ll match it at the counter and test the new one before you leave.
