WYE866

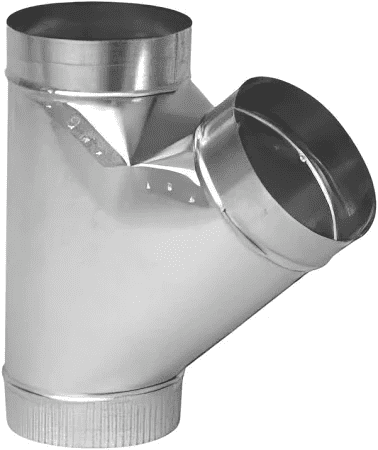

A galvanized metal wye fitting (8″ x 6″ x 6″) that splits a 8″ duct into two smaller 6″ branches. Used when you need to reduce and split a trunk line into two supply runs. Standard residential HVAC ductwork fitting.

Specs: 8″ x 6″ x 6″, galvanized steel

Replaces: 800080606, 850866, WYE866

Fits: Standard round ductwork in residential and light commercial HVAC systems

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeDuct wye
• Main8" round
• Branches6" and 6"
• Configuration8 - 6 - 6
• BalancingDamper each branch just past the wye

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 800080606
• WYE866

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

How is a wye sized?

Main first, then the two branches. A 9-7-7 wye takes a 9 inch run in and splits it into two 7 inch branches.

Can I split a run into two the same size as the main?

You will see wyes like 12-12-12 and 10-10-10, and they have their uses, but understand what happens: two branches the same size as the main cannot both carry full flow. Air divides by the path of least resistance, so the shorter or straighter branch takes most of it.

Wye or tee?

A wye splits at an angle so the air keeps moving in roughly the direction it was already going. A tee turns it ninety degrees and costs far more pressure. Use a wye wherever you have the room.

How do I balance the two branches?

Put a damper in each branch just past the wye. Trying to balance at the registers instead is how you end up with whistling vents and a room that still runs hot.

Do you stock all the combinations?

We carry the common residential splits on the shelf at 10226 Plano Rd, Suite 104 in Dallas. Bring your main and branch sizes.
