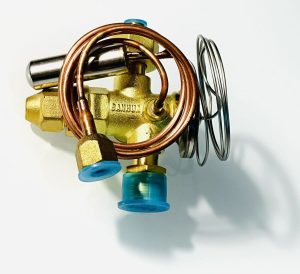

TXVFE-3-410A-KIT – EXPANSION VALVE (410, 3T, UNIVERSAL)

The TXV (thermostatic expansion valve) controls how much refrigerant flows into your evaporator coil. If your AC is freezing up, not cooling well, or showing abnormal superheat readings, the TXV may need replacement. This Sanhua valve is a 3-ton R-410A replacement with universal kit with Aeroquip and Chatleff fittings.

Specs: R-410A refrigerant, 3-ton capacity, 3/8″ inlet, 1/2″ outlet, Sanhua brand

Replaces: TXVFE-3-410A-KIT

Fits: Universal — residential and light commercial AC systems using R-410A refrigerant in the 3-ton range

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeThermostatic expansion valve (TXV)
• RefrigerantR-410A
• Tonnage3 tons
• ConnectionUniversal flare-kit
• OEM CompatibilityUniversal

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• TXVFE-3-410A-KIT

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• Thermostatic expansion valve (TXV) -- fits residential AC and heat pump evaporator coils with matching refrigerant class + tonnage
• R-410A, R-454B, and R-32 TXVs are interchangeable (same P/T curves); R-22 is NOT interchangeable with the others
• Chatleff threaded connection fits most Goodman, Rheem, Lennox, and Allstyle coils; Universal-kit includes flare adapters for other distributor fittings

How do I install a TXV correctly?

1. Match the refrigerant class + tonnage. 2. Braze the inlet and outlet connections with refrigerant-rated low-temp brazing rod, keeping the valve body wrapped in wet rag to prevent heat damage. 3. Mount the sensing bulb on the TOP of the suction line (clamped tight, insulated). Wrong bulb position = wrong superheat reading = wrong refrigerant feed. 4. Connect the external equalizer line (if equipped) downstream of the bulb. 5. Pull vacuum to 500 microns minimum before charging.

What's the difference between Universal-kit and Chatleff?

Universal kits include flare connections that adapt to a variety of distributor fittings. Chatleff is the threaded connection that fits most Goodman, Rheem, Lennox, and Allstyle evaporator coils. Verify your distributor's fitting style -- bring the old TXV in or take a photo of the existing fitting before ordering.

Why does my system have high superheat?

Could be: undercharge, restricted TXV (filter screen plugged, frozen / oil-fouled bulb), wrong-tonnage TXV, or non-condensables. Diagnose charge first; replace TXV only after eliminating other causes.

Can I use an R-22 TXV on an R-410A system?

NO. R-410A operates at ~60% higher pressures than R-22, so an R-22 TXV will starve or flood an R-410A evaporator. HOWEVER, R-410A, R-454B, and R-32 TXVs ARE interchangeable -- those three refrigerants all run nearly identical P/T curves, so a 410A TXV works fine on a 454B or R-32 system at the same tonnage. Match the refrigerant class first (R-22 alone vs R-410A/R-454B/R-32 group), then verify tonnage.
