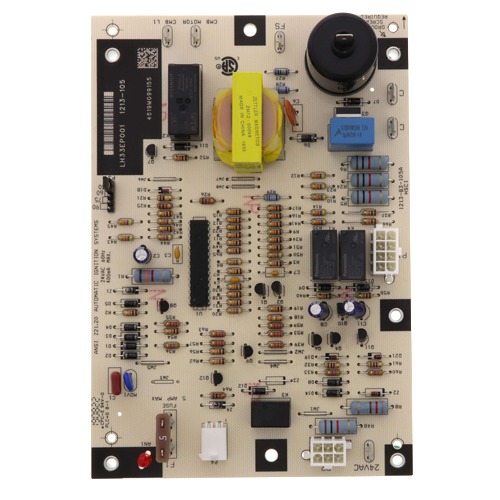

LH33EP001 – IGNITION CONTROL BOARD (OEM, 1188193)

Carrier/Bryant/Payne OEM ignition control board. Carrier publishes no public specification sheet for this part to non-dealers, and no manufacturer cross-reference could be verified, so no electrical ratings are stated here. Our records associate it with Carrier number 1188193. Confirm against the part nameplate before installing.

Specs

• BrandCarrier / Bryant / Payne (OEM)
• TypeIgnition control board
• Related number (our records)1188193
• Manufacturer specs publishedNo
• Data SourceOTP stock record - not manufacturer-verified

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 48FCDA0623A
• 48FCDA06A2A3A0A0A0

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

How do I know the board is actually bad?

Most boards that get replaced were not the problem. Check the on-board fuse first (usually a 3 amp automotive blade), then the rollout and limit switches, the pressure switch and its hose, the flame sensor and the igniter. Then pull the fault history. Most controls from the last 20 years store the last four or five faults, and many have a recall button that scrolls them back. The legend is inside the blower door. If the board powers up, sequences and flashes a code at a switch, it is doing its job.

The 3 amp fuse keeps blowing. Do I need a board?

Almost never. A blown fuse means a short on the 24 volt side, and the most common by far is thermostat wire rubbed through where it crosses sheet metal, at a cabinet knockout or the condenser whip entry. Pull the thermostat wires off the board and the Y wire off the contactor, fuse it, and power up. If it holds, the fault is in the wiring.

Do the DIP switches matter?

Very much. Photograph every switch bank and wire before the old board comes out. Settings cover heat fan off delay (90, 120, 150 or 180 seconds), single or multi-stage stat, conventional or heat pump, and blower signal type. A wrong off delay reads like a bad board.

Is a control board a universal drop-in?

No. A communicating board (ComfortNet, Infinity, Evolution type) will not run a non-communicating system, and the reverse is true too. Stat, outdoor control and board must all speak the same language. Blower type matters too. PSC boards switch 120V speed taps, X13 boards send 24 volts to a torque input, variable speed boards send a serial signal. Boards are non-returnable once installed, so bring the model number in.
