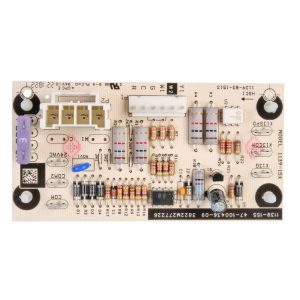

HK32EA008 – DEFROST BOARD (1185790)

Defrost control board for Carrier, Bryant and Payne heat pumps, recorded internally as 1185790. The board times and terminates the defrost cycle, switching the reversing valve and cycling the outdoor fan based on the defrost thermostat and accumulated run time. Carrier publishes no public part detail for this number; ICM Controls’ own replacement literature does list HK32EA008 among the Carrier defrost boards its universal defrost controls are designed to replace, which corroborates the part type but not Carrier’s electrical specifications.

Specifications published by the manufacturer. Source: manufacturer documentation.

Specs

• Part NumberHK32EA008
• Brand (as recorded)Carrier
• Alternate Number1185790
• Product TypeHeat pump defrost control board
• FunctionTimes and terminates defrost cycle
• Cross-reference noteListed as a replaced OEM board in ICM Controls universal defrost cross-reference
• Data SourceOTP stock record - not manufacturer-verified

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 1185790

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

How do I know the board is actually bad?

Most boards that get replaced were not the problem. Check the on-board fuse first (usually a 3 amp automotive blade), then the rollout and limit switches, the pressure switch and its hose, the flame sensor and the igniter. Then pull the fault history. Most controls from the last 20 years store the last four or five faults, and many have a recall button that scrolls them back. The legend is inside the blower door. If the board powers up, sequences and flashes a code at a switch, it is doing its job.

The 3 amp fuse keeps blowing. Do I need a board?

Almost never. A blown fuse means a short on the 24 volt side, and the most common by far is thermostat wire rubbed through where it crosses sheet metal, at a cabinet knockout or the condenser whip entry. Pull the thermostat wires off the board and the Y wire off the contactor, fuse it, and power up. If it holds, the fault is in the wiring.

Do the DIP switches matter?

Very much. Photograph every switch bank and wire before the old board comes out. Settings cover heat fan off delay (90, 120, 150 or 180 seconds), single or multi-stage stat, conventional or heat pump, and blower signal type. A wrong off delay reads like a bad board.
