CT-536G-410 – MANIFOLD

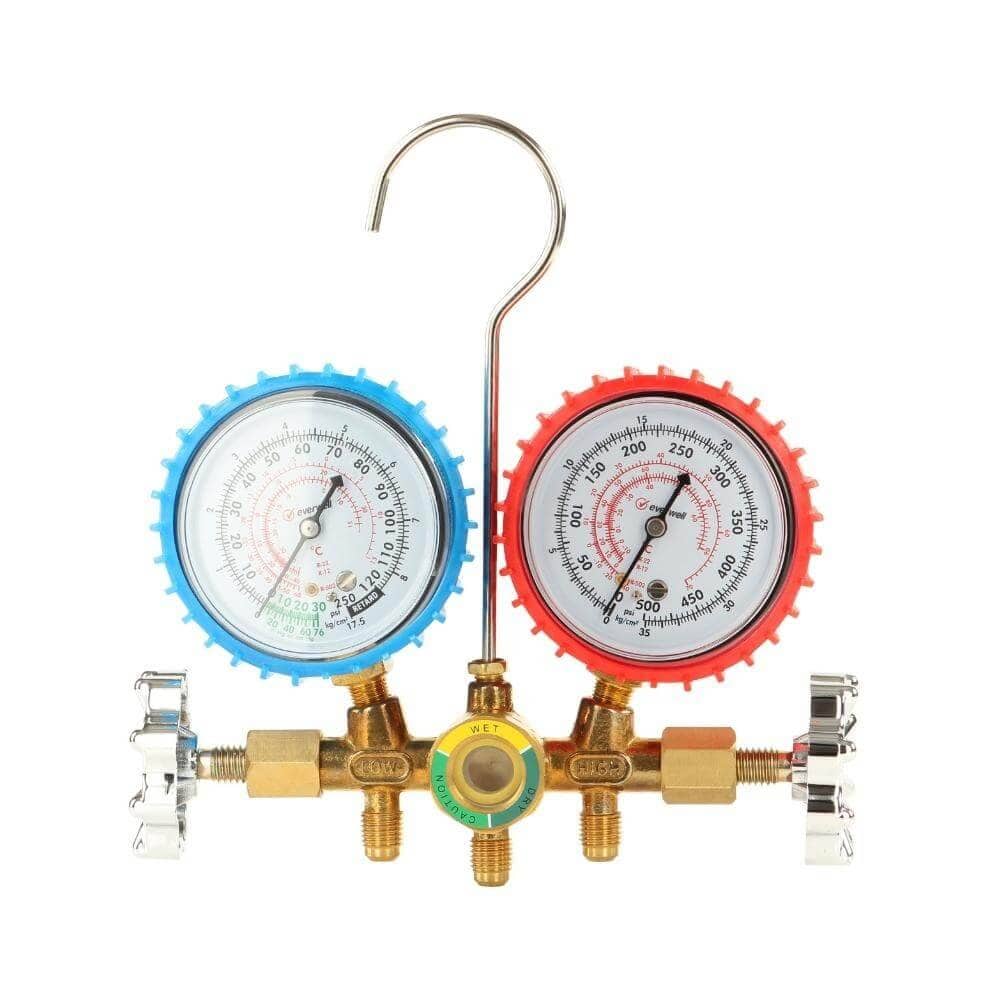

Everwell manifold gauge set for R-410A, R-22, R-404A and R-507A, supplied with a 36 in. hose set. Forged brass body, large sight glass, Teflon seats with adjustable packing, colour-coded dials and high-impact protective boots.

Specifications published by the manufacturer. Source: manufacturer documentation.

Specs

• ManufacturerEverwell Parts
• RefrigerantsR-410A / R-22 / R-404A / R-507A
• PressureSupports up to 800 psi
• Hoses36 in. hose set included
• BodyForged brass with large sight glass
• SeatsTeflon seat with adjustable packing
• GaugesColour-coded dials, high-impact protective boots

Do I need new gauges for R-454B?

Yes for anything the refrigerant touches. R-454B and R-32 are A2Ls, and the equipment makers' own service literature is blunt about it - all service equipment must be A2L rated, and non-rated gear is not to be used. That means an A2L rated manifold and hose set, a non-sparking recovery machine and vacuum pump, a sealed sniffer-style leak detector, and a recovery cylinder labeled for that refrigerant with left-hand threads. Your wrenches and nut drivers are fine. R-410A is the legacy generation now, and a 410A-only manifold does not carry you forward.

Can I charge accurately off analog gauges?

Read trends with them, not targets. A 0 to 500 psi analog face gives you maybe 5 psi of resolution, and at a saturation point 5 psi can be two degrees of subcooling. Use analog to watch a system move - a pump down, a defrost, a suspected restriction. Use a digital gauge or a probe set for weighing in and for superheat and subcooling numbers you intend to act on.

Why can I not just watch the compound gauge for vacuum?

Because it cannot see the range that matters. Full vacuum is 29.92 inches of mercury, and one inch of mercury is roughly 25,400 microns. A needle parked on 29.9 could be at 500 microns or 20,000. A micron gauge is not optional equipment on an evacuation, it is the only instrument that reads the number you are being held to.

What is a passing evacuation?

Pull to 500 microns with the gauge at the system, valve off the pump, and watch the decay. A rise that keeps climbing is a leak. A rise that levels off around 1000 to 1500 is moisture still boiling. Holding under 500 isolated is the pass, not a stopwatch.
