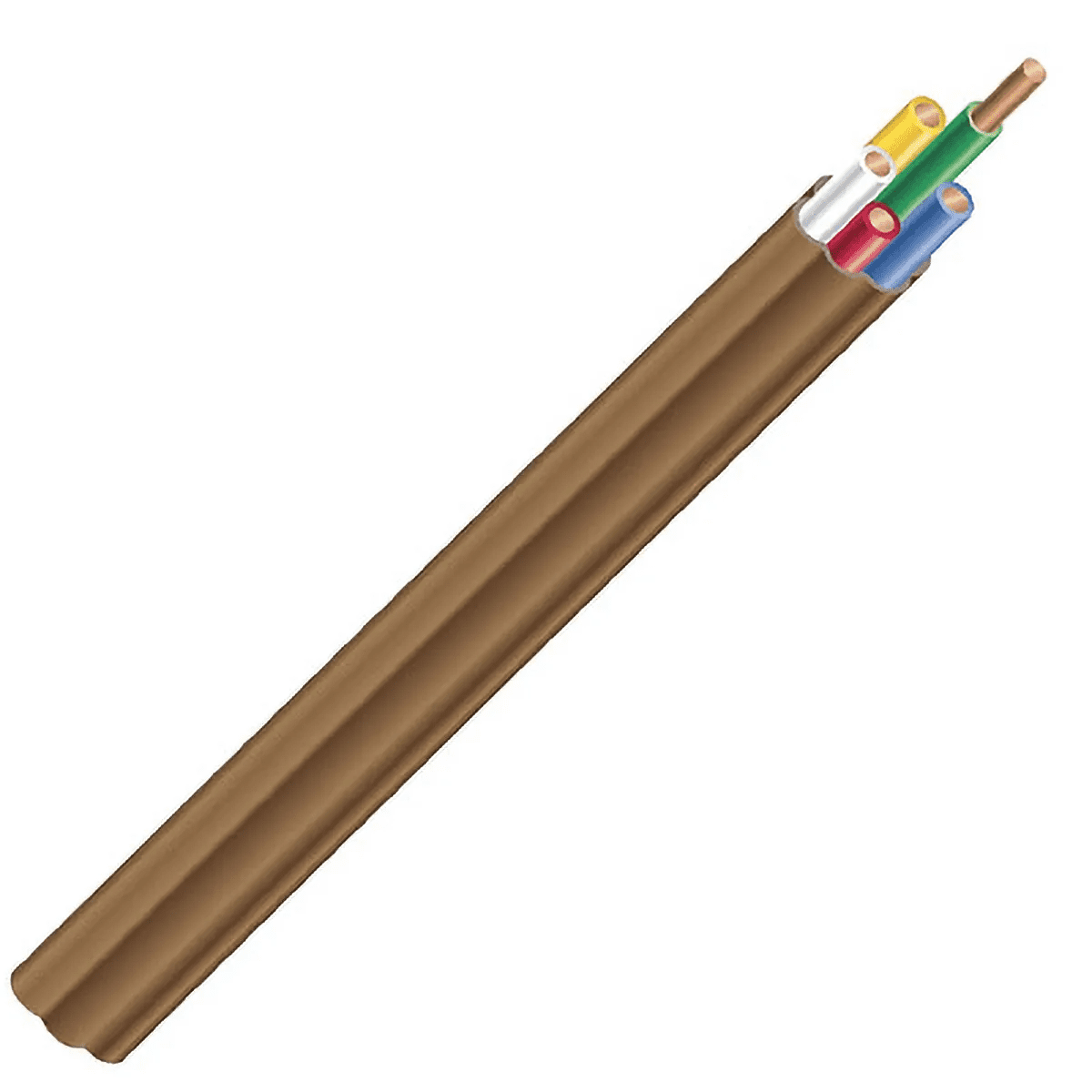

BP18-8 – THERMOSTAT WIRE ROLL (18G, 8W, 250′)
Photograph the existing wiring before you disconnect anything, and note whether there is a C wire - that one detail decides which thermostats are even an option. And match the system type: a conventional stat will not run a heat pump reversing valve properly.
10226 Plano Rd, Suite 104, Dallas TX 75238
Questions? Call or text (214) 340-9421
Mon–Fri 10 am – 7 pm | Sat 10 am – 3 pm
Thermostat wire connects your thermostat to the furnace, air handler, and outdoor unit. 18/8 (18-gauge, 8-conductor) gives you enough wires for multi-stage heating/cooling, heat pump systems, or setups with accessories like humidifiers and dehumidifiers. If you’re running new wire, the extra conductors give you room for future upgrades.
Specs: 18 AWG, 8 conductors, 250-foot roll, moisture-resistant insulation, UV-resistant PVC jacket, solid copper
Replaces: 47160307, BP18-8, SW65676902
Fits: Universal — standard low-voltage thermostat wire for residential and light commercial HVAC systems
Need help? See our Thermostat Not Working Guide.
In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.
Specs
- TypeThermostat
- Check before buyingSystem type and whether you have a C wire
Cross-reference numbers
This part replaces the following OEM and aftermarket numbers:
- 47160307
- BP18-8
- SW65676902
Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.
Will this thermostat work with my system?
Match the system type first - conventional gas/electric, heat pump with auxiliary heat, or multi-stage. A stat wired for a conventional furnace will not run a heat pump's reversing valve correctly, and that is the mistake that costs people a comfortable winter.
Do I need a C wire?
Most digital and all smart thermostats do - the C (common) wire is what powers the stat continuously. Mechanical and battery-powered stats do not. If you have no C wire at the stat, your options are running one, using an adaptor at the air handler, or choosing a battery stat.
What do the letters mean?
R is power, W is heat, Y is cooling, G is the fan, C is common. On a heat pump, O or B runs the reversing valve and there is usually an auxiliary or emergency heat terminal. Photograph the old wiring before you pull a single wire.
Why would I want a locking cover?
Rentals, offices, churches, waiting rooms - anywhere the setpoint gets moved by whoever walks past. A clear cover lets people read it without changing it; a solid metal one hides it entirely.
Is a mechanical thermostat still a reasonable choice?
For a simple system with no scheduling needs, yes. No batteries, nothing to fail in software, and nothing to get confused about. They run a wider temperature swing than a digital stat, which some people prefer and some do not.
Can you help me pick one?
Bring a photo of your current wiring and the furnace or air handler model to 10226 Plano Rd, Suite 104 in Dallas.
