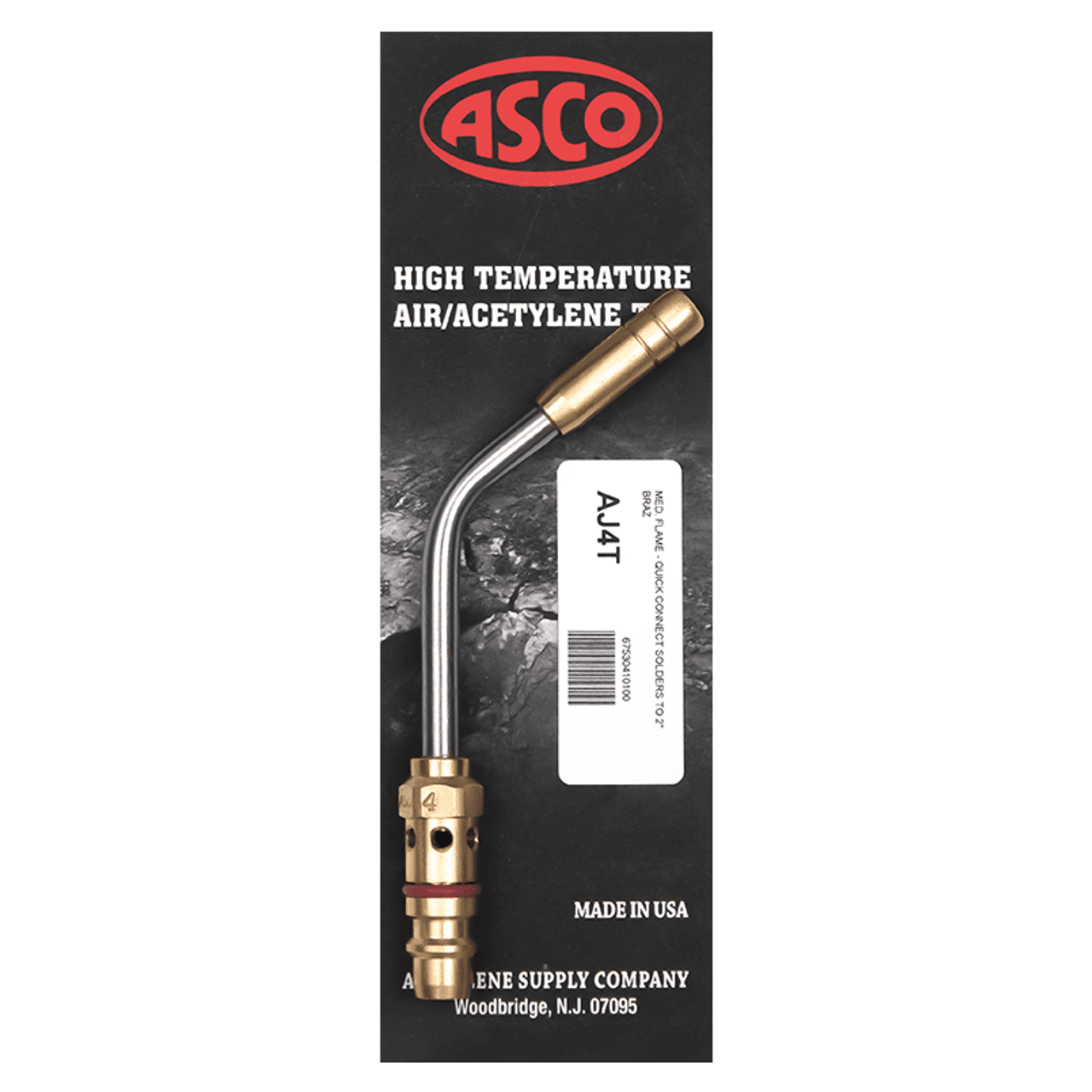

AJ4-T – TORCH TIP ASSEMBLY (1/2″ to 1″)

A medium-output torch tip assembly for brazing and soldering copper tubing from 1/2″ to 1″. Uses a quick-connect fitting for fast tip changes. Equivalent to the TurboTorch A-8 tip — a solid choice for residential and light commercial HVAC brazing work.

Specs: For 1/2″ to 1″ copper, medium flame, air-acetylene, quick-connect fitting

Replaces: 0386-0103, A-8, AJ4-T, AJ4T

Fits: TurboTorch handles (2AM-T, 3AM-T, and similar). For brazing larger residential AC line sets and commercial piping.

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeTorch tip assembly
• Detail1/2" to 1"

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 0386-0103
• A-8
• AJ4-T
• HARRISEQUIVALENT

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• VICTORTURBOTORCHA-5

Do I need to purge with nitrogen while brazing?

On any refrigerant line, yes. Brazing copper in still air forms cupric oxide scale on the inside of the tube. That scale breaks loose later and plugs the metering device or damages the compressor. Flow a low nitrogen purge through the line the whole time you have heat on it.

Oxy-acetylene or air-acetylene?

Air-acetylene is enough for most residential line work and is simpler and safer to handle. Oxy-acetylene runs much hotter, which you want on larger tubing or dirty conditions. If you are learning, air-acetylene is the friendlier place to start.

Which rod do I use on copper to copper?

A phosphorus-bearing rod is self-fluxing on copper to copper, so no flux is needed. Copper to brass or copper to steel needs a silver-bearing rod AND flux. Using a phos rod on steel will crack.

Do I need a flame blanket?

Anywhere you are brazing near framing, insulation or drywall - which in a real house is almost everywhere. A flame-resistant blanket is a lot cheaper than a callback with a fire truck in it.

Are regulators interchangeable between oxygen and acetylene?

No. They have different threads and different pressure ranges on purpose, and acetylene fittings are left-hand threaded. Never force a fitting and never use oil or grease anywhere near an oxygen regulator.

Do you stock the gas too?

We carry torch kits, regulators, tips and supplies at 10226 Plano Rd, Suite 104 in Dallas. Ask at the counter about gas.
