62-102637-81 – CONTROL BOARD

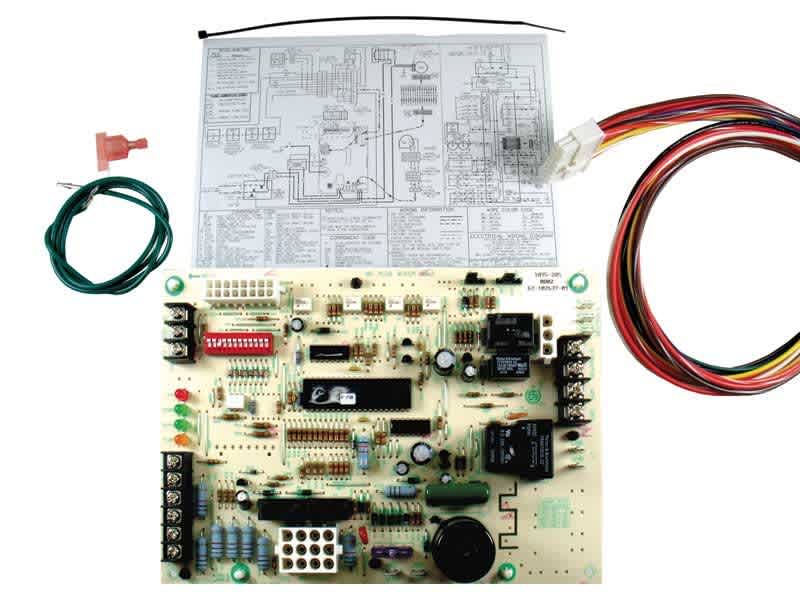

Rheem/Ruud ProTech genuine OEM integrated furnace control (IFC) board kit. The IFC sequences the inducer, pressure switch, ignition, gas valve, flame sense and circulating blower while monitoring the limit and rollout safety circuits. Rheem ships it as a kit with the control board, wiring harness, wire assembly, terminal and cable tie, and lists it as superseding three earlier part numbers.

Specifications published by the manufacturer. Source: manufacturer documentation.

Specs

• BrandProTech (Rheem/Ruud OEM)
• TypeIntegrated furnace control board (IFC) kit
• Kit contents62-102637-01 board, 45-102641-01 harness, AS-50208-31-CY wire assembly, 45-23549-01 terminal, 64-17606-01 cable tie
• Supersedes62-102637-01, 62-24340-01, 62-24340-04
• Used on (Rheem/Ruud)RGLL, RGLR, RGPL, RGPR / UGLL, UGLR, UGPL, UGPR
• Dimensions8.85 x 7.45 x 2.45 in.
• Weight1.105 lb

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 62-102637-01
• 62-24340-01
• 62-24340-04

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

How do I know the board is actually bad?

Most boards that get replaced were not the problem. Check the on-board fuse first (usually a 3 amp automotive blade), then the rollout and limit switches, the pressure switch and its hose, the flame sensor and the igniter. Then pull the fault history. Most controls from the last 20 years store the last four or five faults, and many have a recall button that scrolls them back. The legend is inside the blower door. If the board powers up, sequences and flashes a code at a switch, it is doing its job.

The 3 amp fuse keeps blowing. Do I need a board?

Almost never. A blown fuse means a short on the 24 volt side, and the most common by far is thermostat wire rubbed through where it crosses sheet metal, at a cabinet knockout or the condenser whip entry. Pull the thermostat wires off the board and the Y wire off the contactor, fuse it, and power up. If it holds, the fault is in the wiring.

Do the DIP switches matter?

Very much. Photograph every switch bank and wire before the old board comes out. Settings cover heat fan off delay (90, 120, 150 or 180 seconds), single or multi-stage stat, conventional or heat pump, and blower signal type. A wrong off delay reads like a bad board.

Is a control board a universal drop-in?

No. A communicating board (ComfortNet, Infinity, Evolution type) will not run a non-communicating system, and the reverse is true too. Stat, outdoor control and board must all speak the same language. Blower type matters too. PSC boards switch 120V speed taps, X13 boards send 24 volts to a torque input, variable speed boards send a serial signal. Boards are non-returnable once installed, so bring the model number in.
