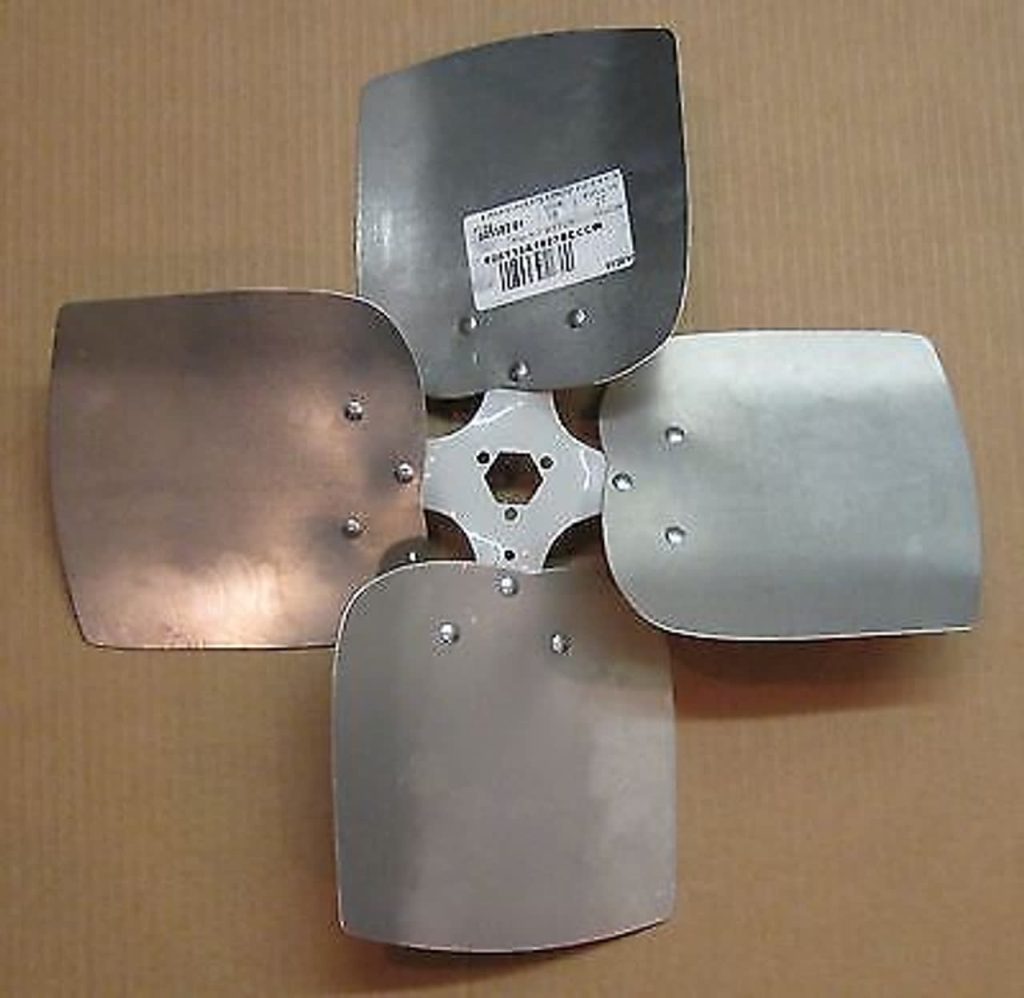

4C2227CCW – FAN BLADE (4, 22″, 27°, CCW, HUBLESS)

Description

The Fasco 4C2227CCW is a high-performance condenser fan blade designed to enhance airflow in HVAC systems. Featuring a 22-inch diameter and four aluminum blades with a 27-degree pitch, it ensures efficient air movement. The hubless design allows for versatile installation with interchangeable hubs, accommodating various system requirements. This fan blade is suitable for use in air-conditioning condensers, power roof ventilators, heat pumps, heat exchangers, unit heaters, and other commercial and industrial equipment.

• Compatibility:
  • Ideal for air-conditioning condensers, power roof ventilators, heat pumps, heat exchangers, unit heaters, and other commercial and industrial equipment requiring a 22-inch, 4-blade, CCW rotating fan blade.
• Temperature Ratings:
  • Standard operating temperatures for HVAC condenser applications.
• Key Technical Specifications:
  • Diameter: 22 inches
  • Number of Blades: 4
  • Pitch: 27 degrees
  • Rotation: Counterclockwise (CCW)
  • Material: High-quality, heavy-duty aluminum blades with zinc and dichromate plated steel spiders
  • Design: Hubless, allowing for the use of interchangeable hex hubs
  • Maximum RPM: 1140
  • Airflow: Approximately 4,840 CFM at 0″ static pressure
  • Horsepower: 0.28 BHP at 0″ static pressure
• Replacement Part Numbers:
  • Fasco Part Number: 4C2227CCW
  • Alternate Part Numbers: 4CL2227
• Additional Information:
  • The hubless design allows for the attachment of interchangeable hex hubs, providing flexibility during installation.
  • Constructed with high-quality, heavy-duty aluminum blades and zinc and dichromate plated steel spiders for durability and corrosion resistance.
  • Blades are tested at 1000 RPM to ensure reliable performance.
