0130M00129 – ICE CUBE RELAY

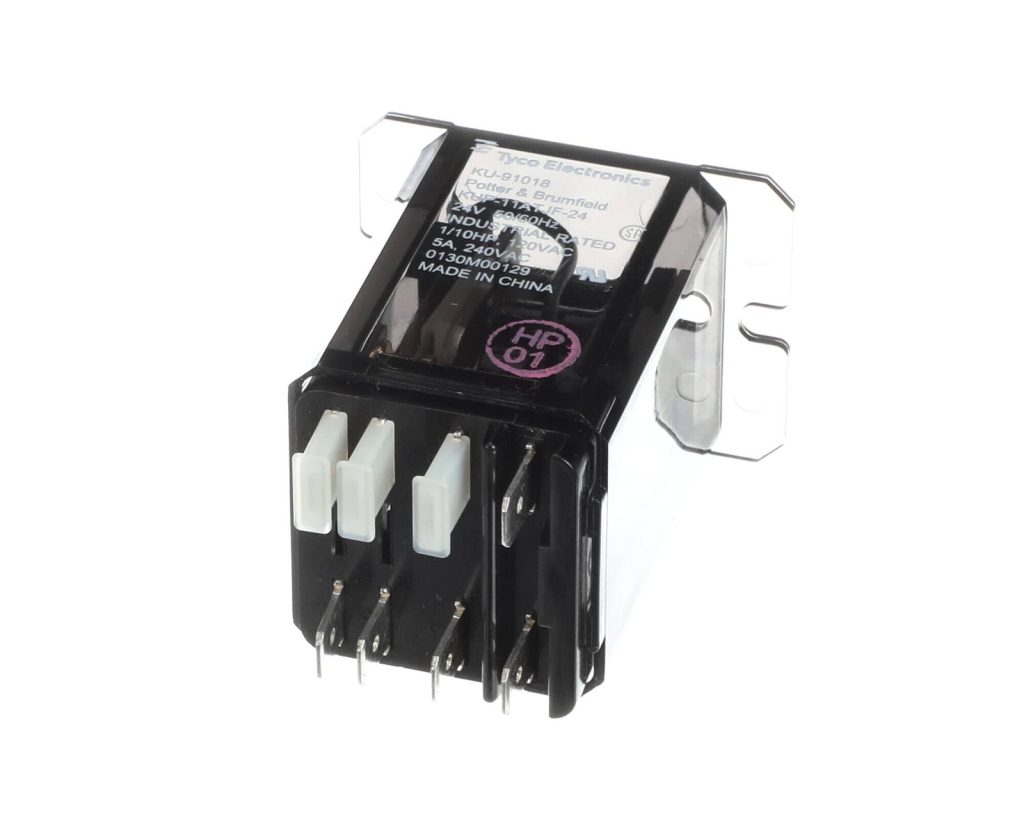

Goodman and Amana service number 0130M00129. The relay itself is a Tyco Electronics / Potter & Brumfield KU-91018 from the KUP ice cube series, with a 24 volt coil, industrial rated, and marked 1/10 HP at 120 VAC and 5 A at 240 VAC. It comes on its mounting bracket with quick-connect terminals.

Specifications

Before you order

Every figure above is read directly off the relay’s own label in the manufacturer photo — Goodman publishes nothing public for this number, so this is the only place the ratings appear. If you are cross-shopping, the numbers printed on the part are KU-91018 and 0130M00129.

Goodman lists 114 model applications for this relay and does not publish the list. Confirmed applications are the Goodman and Amana ASPT and ASPF multi-position air handlers and AWUF wall-mount units. It is not universal — ARUF37C14 and AWUF360516 do not use it, so check your model before ordering.

Specs

• Goodman number0130M00129
• Actual manufacturerTyco Electronics / Potter & Brumfield
• Manufacturer numberKU-91018
• SeriesKUP series ice cube relay
• Coil voltage24 V, 50/60 Hz
• RatingIndustrial rated
• Contact rating1/10 HP at 120 VAC; 5 A at 240 VAC
• MountingBracket mount with quick-connect terminals
• ApprovalsUL / CSA

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• KU-91018
• KUP-11 series

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• ASPT24B14
• ASPT29B14
• ASPT37B14
• ASPT42D14
• ASPT47C14
• ASPT61D14
• ASPF313716
• AWUF370516

What is the difference between a fan relay and a contactor?

Duty and scale. A fan relay switches a blower or an accessory at a few amps off a 24 volt pilot duty coil. A contactor switches a compressor and condenser fan and is built for that inrush and arcing. A relay is not a small contactor. Use one as a contactor and it will pit and weld shut.

How do I pick the right replacement relay?

Match four things: coil voltage, contact arrangement, contact rating and the mounting. A White-Rodgers 90-370 is a Type 184 SPDT with a 24 VAC coil around 77 ohms DC resistance. A 90-340 is a Type 91 DPDT with a 24 VAC coil around 175 ohms. They look alike and are not interchangeable. SPDT gives you one normally open and one normally closed set, DPDT gives you two of each.

How do I test one?

Ohm the coil first, because an open coil is a dead relay. Then energize the coil with 24 volts, listen for the pull-in, and ohm the normally open contacts closed and the normally closed contacts open. A relay that clicks but will not pass current has burnt contacts, and that reads as a dead blower even though the control board is fine.

Why did the relay burn up?

Usually the load, not the relay. A blower drawing high amps because the run capacitor is weak or the wheel is caked with dirt pits relay contacts quickly. Fix the load or you will be back for another relay before the season ends.
