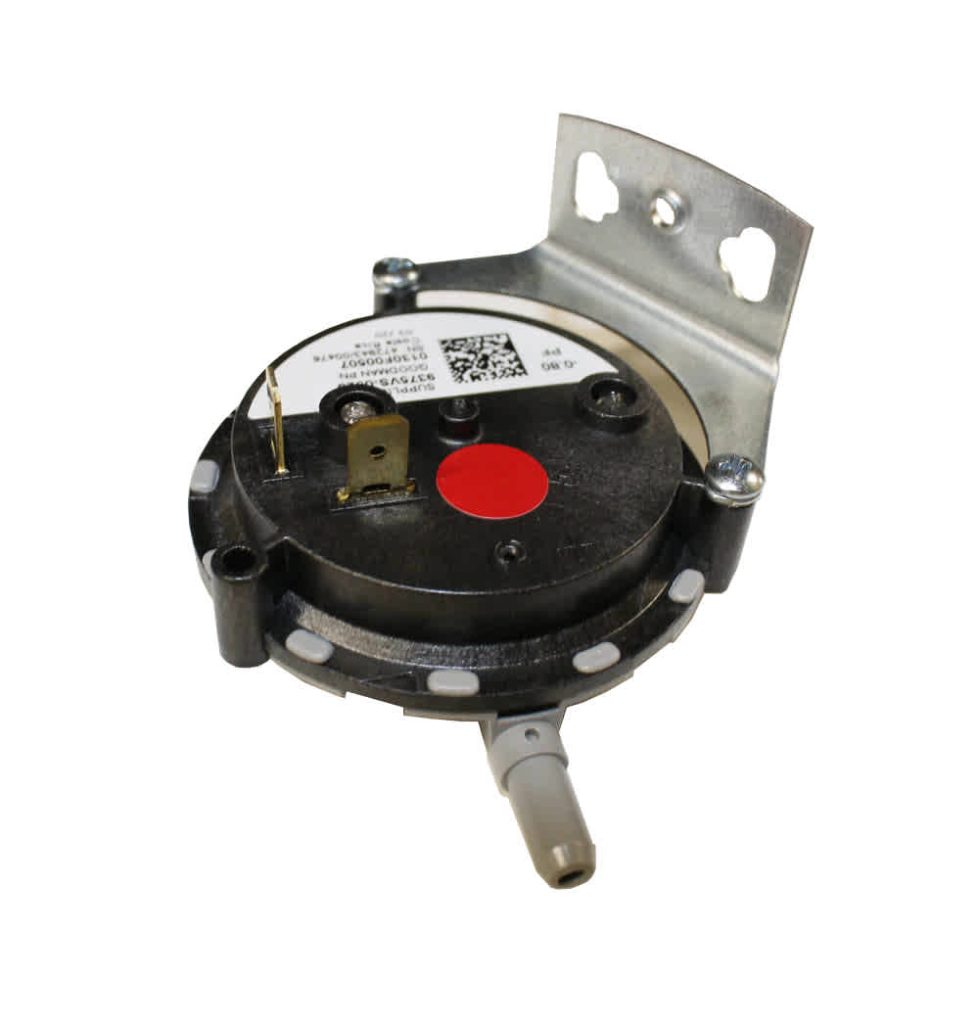

0130F00507 – FURNACE PRESSURE SWITCH (-0.80PF)

Furnace air-proving pressure switch for Goodman/Amana gas furnaces, recorded at a -0.80 in. W.C. setpoint. It monitors the negative pressure created by the draft inducer and must close before the control board will energize the igniter and gas valve, so a failed switch or a blocked vent shows up as a no-heat or lockout condition.

Each series above covers multiple suffix revisions. This switch replaces 0130F00042, and part of the published breadth reflects that supersession — match your furnace’s full model and serial before ordering. Published application data. Always match the full model and serial number on your unit before ordering.

Specs

• Part Number0130F00507
• Brand (as recorded)Goodman
• Product TypeFurnace air pressure switch
• Setpoint-0.80 in. W.C.
• FunctionProves inducer draft before ignition
• Data SourceOTP stock record - not manufacturer-verified

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• S1-02435786000
• B1370150
• GMS80805CNBA
• 0130F00042

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• AMH80403 / 80603 / 80803 / 80804 / 80805 series
• AMH81005 / 81205 / 81405 series
• AMS81205, AMS81405
• AMEH800805 series
• GMH80403 / 80603 / 80803 / 80804 / 80805 series
• GMH81005 / 81205 / 81405 series
• GMS80403 / 80603 / 80804 / 80805 series
• GMS81005 / 81205 / 81405 series
• GME80805, GME81005 series
• GDH81005, GDS81005 series
• GHS80403, GHS80453, GHS80604 series
• DM80HE0805, DM80HS1205, DM80HS1405
• DM80SS1205, DM80SS1405
• DD80HS1005CX, DD80SS1005CX
• ADSH801005CX, ADSS801005CX
• WFM18140S5DN

What does the furnace pressure switch prove?

It is a normally open switch on a hose running to the inducer housing or the heat exchanger. When the inducer spins up and pulls enough negative pressure, the contacts close and the board is allowed to light the burners. A switch marked -0.75 in. W.C. closes at three quarters of an inch of water column of vacuum. That is the furnace verifying draft before it makes fire.

Mine will not close. Do I need a new switch?

Usually not, because these do not fail all that often. On a 90 percent furnace look at the condensate trap and drain line first - water backing up into the secondary heat exchanger is the most common cause we hear about. After that, the hose (cracked, kinked, or full of crud and water), the port on the inducer housing, the flue and intake for a bird or wasp nest, and the inducer itself for weak amp draw or a chewed up wheel.

How do I pick the right one?

Read the setpoint off the switch body. It is printed or stamped right there, along with whether it is a single or two-stage switch. Do not guess by looks - the same housing gets built at a half dozen different pressures, and -0.75, -0.80 and -0.85 in. W.C. are indistinguishable on the shelf. Bring the old switch or a clear photo of the label.

Can I jump it out to get heat tonight?

No. That switch is what keeps a blocked flue from pushing combustion gas into the house instead of out the roof.
