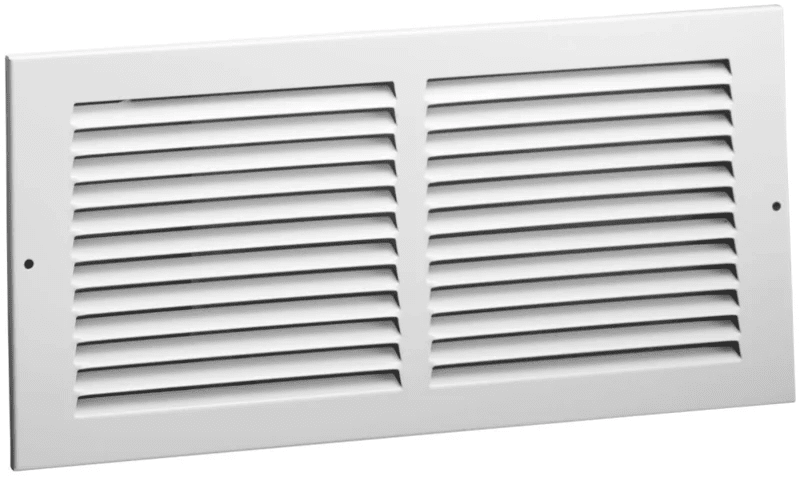

RG3006 – RETURN GRILLE (30″W x 6″T)

A return air grille covers your return duct opening and allows air to flow back to your HVAC system. If your current grille is dented, rusted, yellowed, or missing, swapping it out takes about two minutes with a screwdriver. Fixed louver blades at a 50-degree angle for good airflow.

Specs: 30″W x 6″T, fixed louver blades, 1/2″ blade spacing, steel construction, white powder-coated finish, wall or ceiling mount

Replaces: 1RA3006WH, SWSAG3006

Fits: Universal — fits any residential or commercial HVAC system with a matching duct opening size.

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeReturn grille
• Duct opening30"W x 6"T
• SizingSold by the duct opening, width first then height

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 1RA3006WH
• SWSAG3006

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

What size return grille or register do I need?

Grilles and registers are sold by the DUCT OPENING they cover, not by the outside dimension of the faceplate. Measure the hole in the wall, ceiling or floor - the faceplate will overlap it by roughly an inch on each side.

Which number comes first, width or height?

Width first, then height. A 20 x 30 return grille is 20 inches wide and 30 inches tall. Getting them backwards is the most common reason a grille comes back.

Return grille or supply register - what is the difference?

A return grille pulls air back to the system and is usually large, fixed and often takes a filter. A supply register pushes conditioned air into the room and has adjustable louvers and a damper so you can aim and throttle it.

Can I close off a register in a room I do not use?

A couple of them, briefly, is usually survivable. Closing several raises static pressure across the whole system, which can freeze a coil, crack a heat exchanger over time, or push a blower out of its range. If a room is always too hot or too cold the answer is almost never the register.

My return grille is too small. Does that matter?

Yes. Undersized return is one of the most common causes of poor airflow, noisy vents and short equipment life in Dallas houses. If the grille whistles or the filter sucks flat against it, the return is undersized.

Do you stock my size?

We keep the common residential sizes on the shelf. Measure the duct opening, then walk in to 10226 Plano Rd, Suite 104 in Dallas and we will match it.
