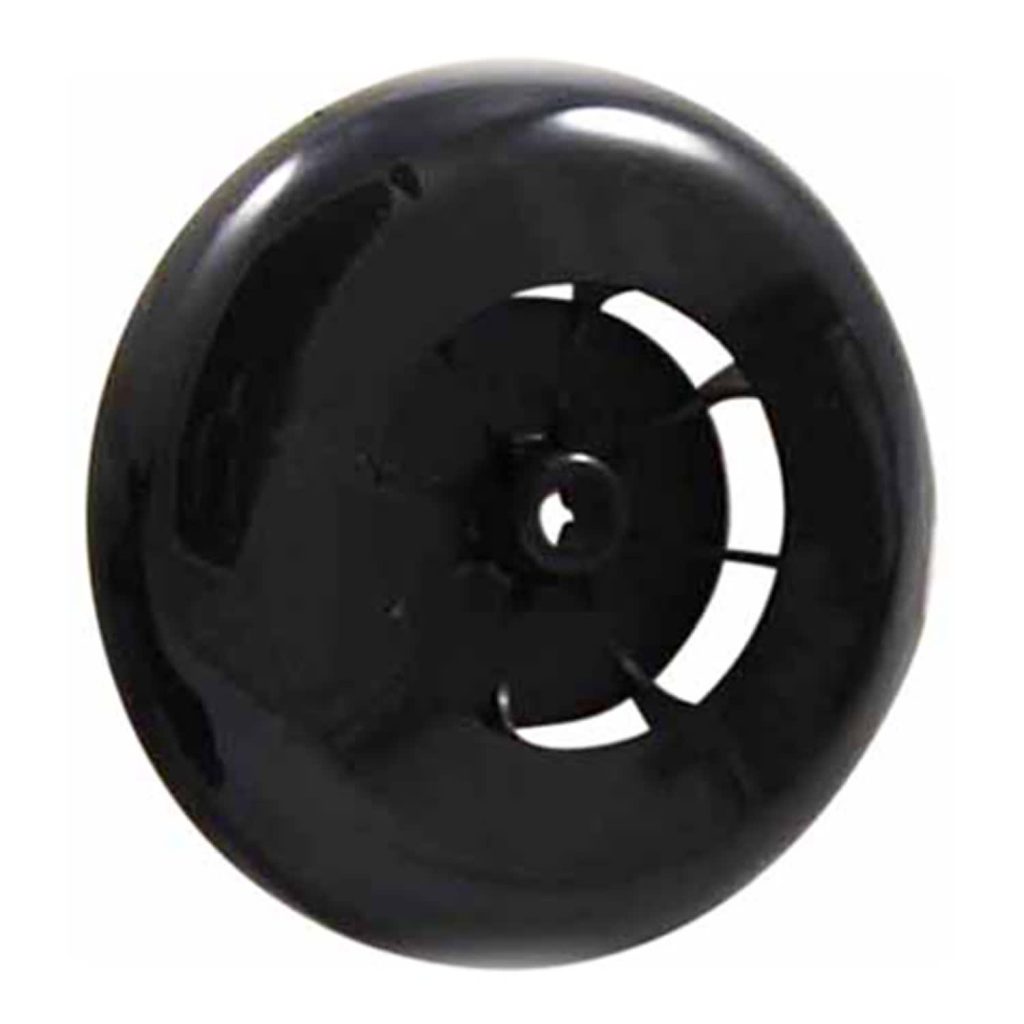

LA660002 – INDUCER WHEEL (A65569FB)

The inducer blower wheel sits inside the draft inducer assembly and moves combustion gases out of your furnace. If the wheel is cracked, chipped, or has broken blades, you’ll hear rattling or vibration from the inducer area. Replacing just the wheel is much cheaper than a whole inducer assembly.

Specs: Aftermarket replacement inducer wheel. Part number A65569FB.

Replaces: LA660002, A65569FB

Fits: Carrier, Bryant, and Payne furnaces using inducer wheel LA660002.

Need help? See our Furnace Not Heating Guide.

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeInducer wheel (replacement, no motor)

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• LA660002
• A65569FB

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

My furnace ignites then shuts off — is the inducer bad?

Usually no. That symptom is almost always the pressure switch — the inducer spins fine but the switch doesn't see enough draft. Check the condensate drain (plug = water backs up, switch won't close). Replace the hose if it's brittle. Inducer assembly is rarely the actual failure.

How do I test an inducer motor?

Pull the assembly, spin the wheel by hand — should turn freely, no grinding. Apply 120V directly to the motor leads (skip the board) — should run smoothly. If it doesn't spin, draws weak airflow, or bearings whine, replace.

Will an aftermarket inducer fit my OEM equipment?

Most aftermarket assemblies labeled 'DIRECT REPLACEMENT' fit without modification — same wheel diameter, same motor mount, same harness. Bring the old assembly in to verify before driving home with it.

How long should an inducer motor last?

8-15 years typical. The motor itself outlasts the bearings — bearing failure is the usual mode. Sealed-bearing motors last longer than open-bearing.
