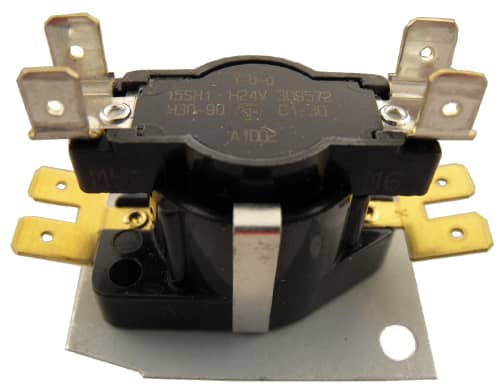

HS1P2S – HEAT SEQUENCER (SPST, Q102)

If your electric furnace is not heating or the blower timing is off, a failed heat sequencer could be the cause. This single-pole single-throw sequencer controls one circuit on a timed delay, with different timing than the Q101.

Specs: 24V coil, SPST (single-pole, single-throw), thermal time delay

Replaces: NS102, Q102

Fits: Universal — electric, gas, or oil furnaces requiring an SPST heat sequencer

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeElectric heat strip sequencer
• Pole ConfigurationSPST
• Coil Voltage24V AC
• Delay30-90 seconds between stages (typical)
• OEM CompatibilityUniversal

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• NS102
• HS1P2S
• Q102

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• Universal aftermarket heat sequencer — staggers electric heat strip energization on residential and light-commercial electric heat kits
• Common applications: Rheem RXBH / RXMS / RXST, Goodman HKS, First Co H1830, Carrier KFCEH, Trane heat kits
• Match pole configuration (SPST/DPST/DPDT/TPST) to your existing sequencer; cross-reference part number with your heat kit's wiring diagram

How does a heat sequencer work?

A small bimetallic heater inside the sequencer gets 24V on a heat call from the thermostat. The heat slowly warms a bimetal disc that closes successive contact sets over 30-90 seconds — energizing each heat strip in sequence to prevent a simultaneous current spike that would trip the breaker.

How do I test a heat sequencer?

Apply 24V to the coil terminals (no load). Wait 30-90 seconds — you should hear individual contacts click closed in sequence. Use a multimeter for continuity across each load terminal pair. If one stage never closes, replace.

SPST vs DPST vs DPDT vs TPST — what's the difference?

- SPST = single pole, single throw (1 contact set, switches 1 strip) - DPST = double pole, single throw (2 contacts, switches 2 strips simultaneously) - DPDT = double pole, double throw (2 contacts with NO + NC positions) - TPST = triple pole, single throw (3 contacts, switches 3 strips simultaneously)

Why won't my heat strips come on?

Test the sequencer first — bad sequencer = no signal to the strips. Also check: thermostat call on W terminal, 24V at sequencer coil during heat call, line voltage on strip side, intact heater elements (continuity test each strip).
