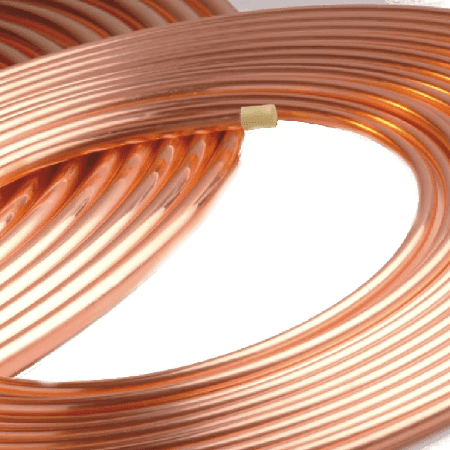

5/8X50 – COPPER REFRIGERATION TUBING (5/8″ X 50′) – NO RETURNS

Soft copper refrigeration tubing is used for connecting AC and refrigeration equipment. ACR-grade copper comes clean, dehydrated, and sealed. This 50-foot roll of 5/8″ tubing is used for suction lines in smaller residential AC systems and some mini-split installations.

Specs: 5/8″ OD x 50 ft, soft drawn ACR copper tubing, dehydrated and capped.

Replaces: CT58X50OD, V-HLR-050-0625

Fits: HVAC and refrigeration systems requiring 5/8″ copper tubing.

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeRefrigeration copper fitting
• Line size5/8" OD
• Fitting typeFitting
• SizingMeasured on the OUTSIDE diameter of the tube, not plumbing nominal
• JoiningBraze with a nitrogen purge to prevent internal scale

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• JMFEQUIVALENT
• MUELLEREQUIVALENT
• PDMEQUIVALENT
• V-HLR-050-0625

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

What size copper fitting do I need?

Refrigeration copper is sized by the OUTSIDE diameter of the tube, unlike plumbing copper which is sized by nominal inside diameter. A 3/4" refrigeration fitting measures 3/4" across the outside of the pipe it accepts. Measure the tube, not the old fitting.

What is a street elbow?

A street elbow has one male end and one female end, so it slips straight into another fitting without a short piece of pipe between them. A standard elbow is female on both ends. Street fittings save a joint in tight spaces.

Why long radius?

A long radius elbow turns the refrigerant more gently, which means less pressure drop and better oil return than a tight bend. On refrigerant lines that matters more than it does on water.

What is a coupling with a stop?

A dimple or ridge in the middle that stops the pipe at the correct insertion depth, so both ends seat evenly. A coupling without a stop lets you slide it along the pipe, which is useful for repairs where you cannot pull the line apart.

Do I need to purge with nitrogen while brazing?

Yes, on any refrigerant line. Brazing copper without a nitrogen purge forms cupric oxide scale inside the tube, which breaks loose and plugs the metering device or the compressor. Flow a low nitrogen purge through the line while you braze.

Do you stock line set and fittings?

We keep the common refrigeration copper fittings and brazing supplies on the shelf at 10226 Plano Rd, Suite 104 in Dallas. Bring the old fitting or the tube size.
