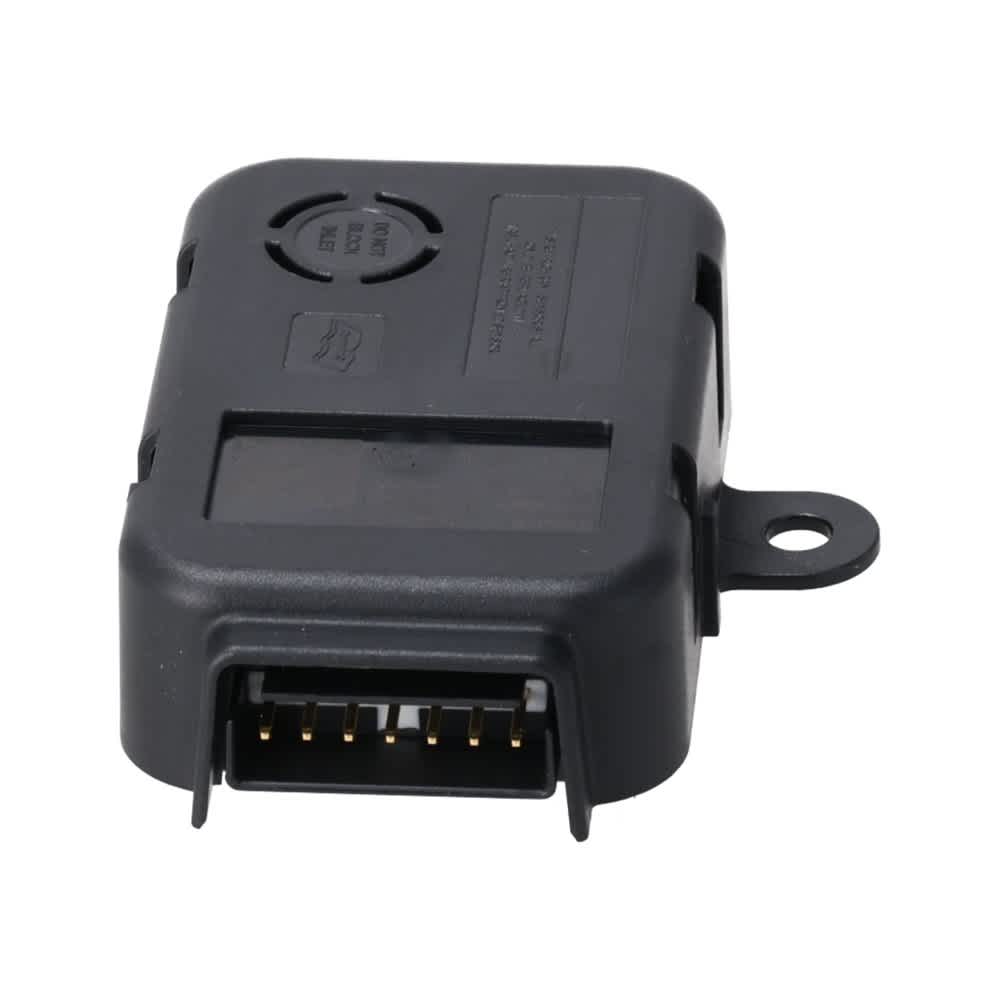

47-109642-01 – A2L SENSOR

Rheem/Ruud ProTech genuine OEM A2L refrigerant detection sensor built on a Sensirion sensing element, used in equipment charged with A2L mildly flammable refrigerants to detect a leak and signal the control to run mitigation. Rheem lists it as replacing 47-109529-01 and 47-109708-01 but publishes no detection threshold or electrical table.

Specifications published by the manufacturer. Source: manufacturer documentation.

Specs

• BrandProTech (Rheem/Ruud OEM)
• TypeA2L refrigerant detection sensor
• Sensing elementSensirion
• Supersedes47-109529-01, 47-109708-01
• Dimensions6.00 x 6.00 x 2.00 in.
• Weight0.10 lb
• Electrical ratings publishedNo

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 47-109529-01
• 47-109708-01

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.
