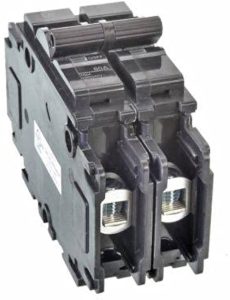

425097K – CIRCUIT BREAKER (LINE – LUG/LOAD – QUICK CONNECT, DIN RAIL, 60A)

This DIN rail-mounted circuit breaker goes inside the equipment cabinet (typically in a heat pump or air handler) to provide overcurrent protection. This version has lug connections on the line side and quick-connect terminals on the load side. If the internal breaker trips repeatedly or won’t reset, it may need to be replaced.

Specs: 60 amp, 2-pole, DIN rail mount, line: lug / load: quick-connect terminals

Replaces: 425097

Fits: Rheem/Ruud heat pumps and air handlers with DIN rail breaker panels

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 425097

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.
