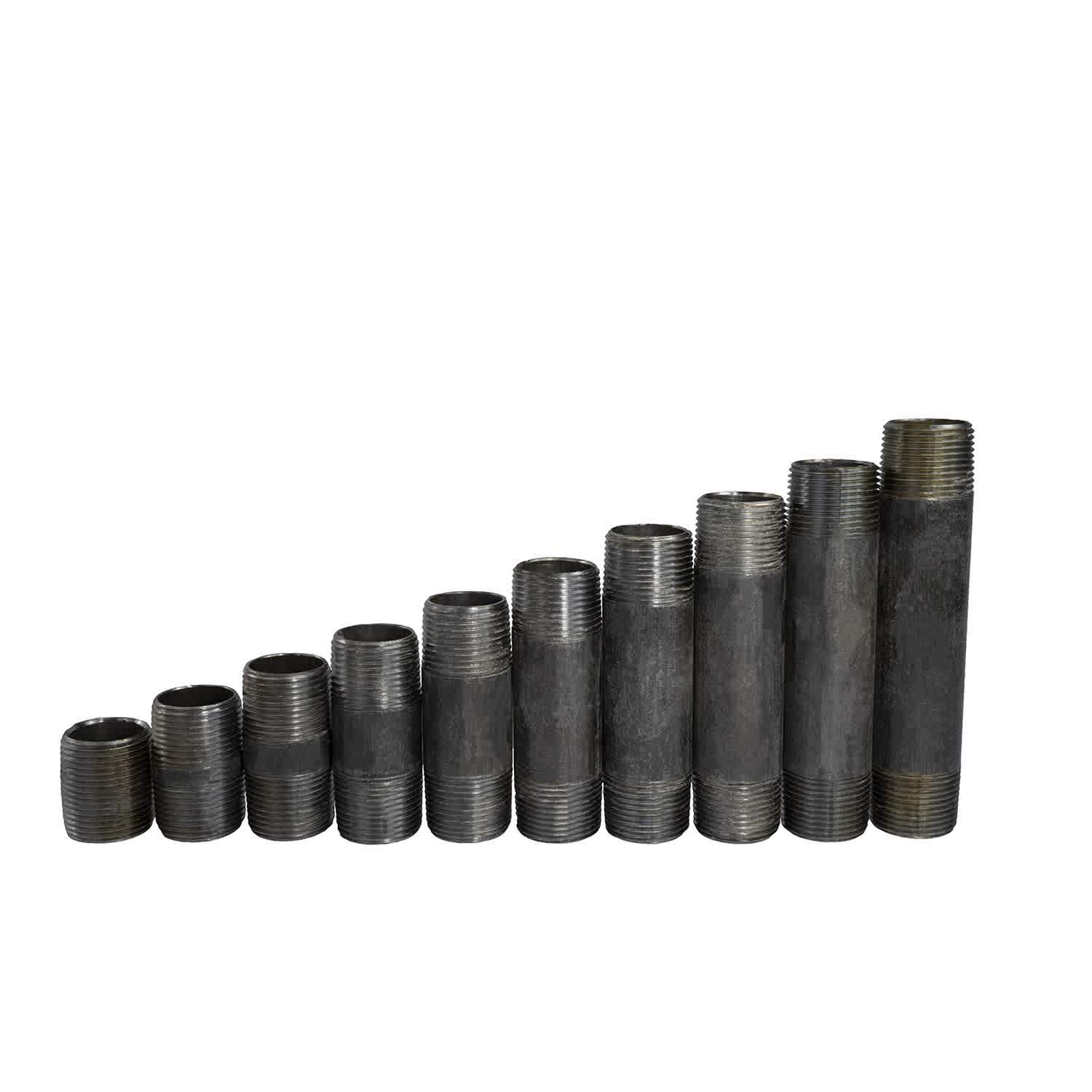

1/2BP8 – BLACK STEEL GAS PIPE (1/2″ x 8″ NIPPLE)

Black steel pipe nipples are used to connect gas lines in furnace installations, water heaters, and other gas appliances. These threaded fittings screw into valves, elbows, tees, and other fittings. Always use pipe thread sealant or yellow gas-rated Teflon tape on threads.

Specs: 1/2″ NPT x 8″ long, black steel, male threads both ends

Replaces: 0830017208, SBAN4-080

Fits: Universal — any 1/2″ NPT gas piping system (furnaces, water heaters, boilers, fireplaces)

In stock at Open To Public HVAC Parts in Dallas. We test parts at the counter before you buy. Call or text (214) 340-9421.

Specs

• TypeGas pipe or fitting
• Size1/2"
• Detail1/2" x 8" NIPPLE

Cross-reference numbers

This part replaces the following OEM and aftermarket numbers:

• 0830017208
• 12BP8
• BLACK-PIPE
• SBAN4-080
• WARD12X8NIPPLE

Not sure if your number matches? Call (214) 340-9421 or bring the old part in — bench-testing is free.

Fits these models

• STZINDUSTRIES12X8

What is the difference between the pipe types you stock?

PVC is used for condensate drains and for venting high-efficiency furnaces. Black iron and CSST are gas. Conduit protects electrical. They are not interchangeable and each has its own code requirements.

Can I use PVC for a furnace flue?

Only on a condensing (90%+) furnace that is designed for it, and only the pipe schedule and material the manufacturer specifies. An 80% furnace vents into metal B-vent, never plastic - the flue gas is far too hot.

What size condensate drain line?

3/4 inch is the residential standard. Give it a consistent slope, put a cleanout at the top so it can be vacuumed, and fit a trap where the equipment calls for one.

Who can run gas pipe?

In Texas a homeowner may work on their own home under the homeowner exemption; that does not extend to doing it for someone else. Gas work is unforgiving and leak testing is not optional. If you are unsure, this is one to hand off.

Do you cut to length?

Ask at the counter. 10226 Plano Rd, Suite 104 in Dallas.
