What Is a Hard Start Kit and When Does Your AC Need One?
If your AC struggles to start — making a loud clicking sound, briefly tripping the breaker, or taking several attempts before the compressor kicks on — a hard start kit might be exactly what it needs. It’s one of the most affordable upgrades you can make to extend the life of an aging compressor, and it’s a simple DIY install.
How a Hard Start Kit Works
A hard start kit consists of a start capacitor and a relay (sometimes called a potential relay). It connects to your compressor circuit and gives the compressor a powerful jolt of starting torque during the first fraction of a second when it cycles on. Once the compressor is up to speed, the relay disconnects the start capacitor from the circuit so it doesn’t interfere with normal operation.
Think of it like a boost — the compressor still does all the work, but the hard start kit makes that initial startup much easier on the motor and electrical system.
When Your AC Needs One
Not every system needs a hard start kit, but several situations make it a smart addition. If your compressor is more than 8 to 10 years old, it’s working harder to start than when it was new — a hard start kit reduces that strain. If your lights dim or flicker when the AC kicks on, the compressor is pulling excessive startup amps that a hard start kit will reduce. If your AC is on a long refrigerant line (common in some Dallas homes where the condenser is far from the air handler), the compressor works harder against that additional pressure.
Systems with a heat pump benefit especially, since the compressor runs year-round and accumulates more start cycles than a cooling-only unit.
Can It Save a Struggling Compressor?
Sometimes. If your compressor is hard-starting but the windings are still good, a hard start kit can add years of life by reducing the electrical and mechanical stress of each startup. However, if the compressor already has bad windings or is mechanically locked up, a hard start kit won’t fix that — it just masks the symptom temporarily.
Bring in your run capacitor for a free test first. A weak run capacitor causes the same symptoms as a compressor that needs a hard start kit, and it’s a $10 to $30 fix instead of a $40 to $60 hard start kit.
Installation
Installing a hard start kit is a 15-minute job. You’ll wire the start capacitor between the HERM and Common terminals on your existing run capacitor, and mount the relay nearby in the electrical compartment. The kit comes with instructions, and we’ll walk you through the wiring at the counter when you buy one. The total cost is typically $40 to $60 for the kit — compared to $200 to $350 if a tech installs it.

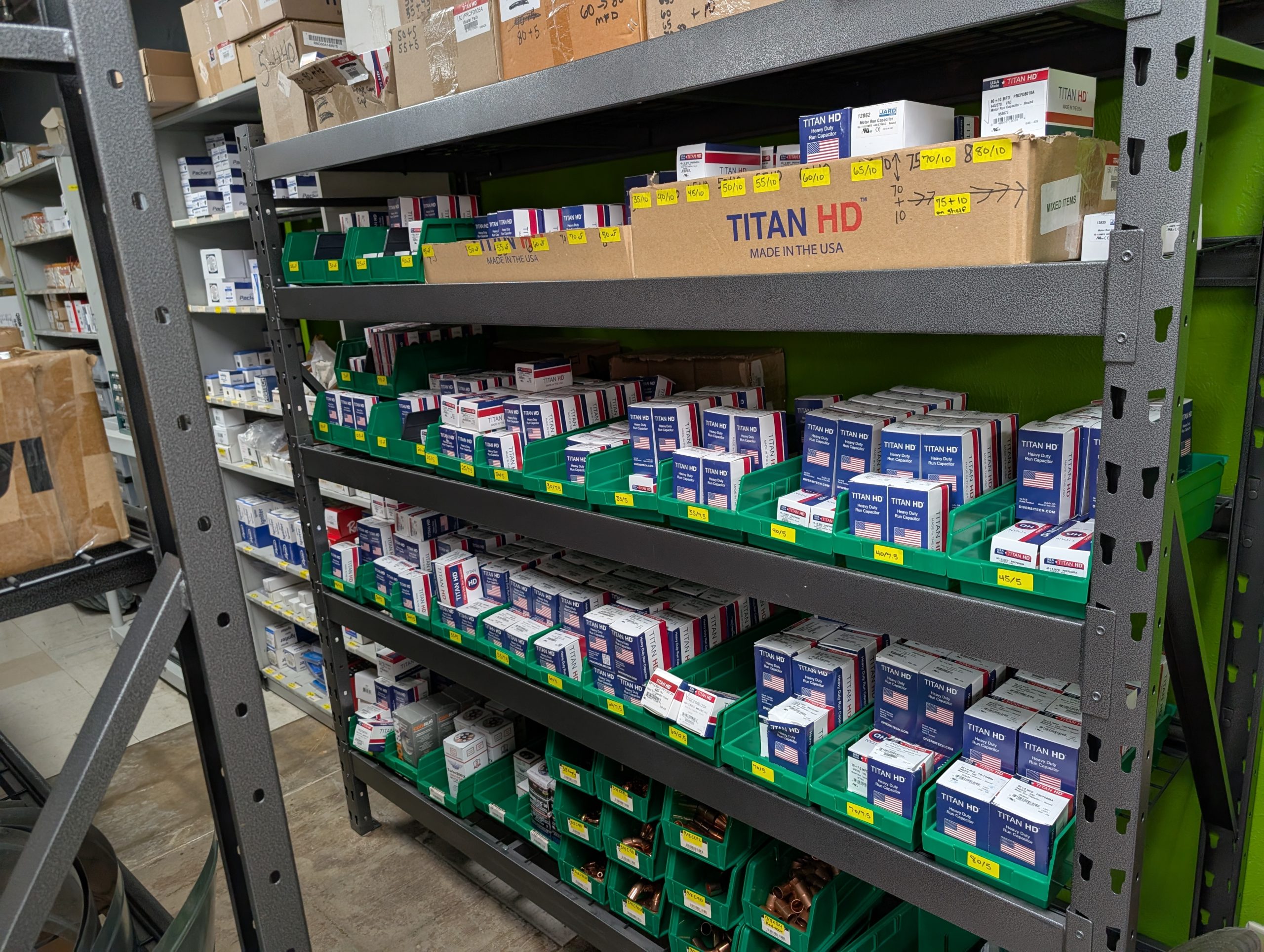

We carry hard start kits sized for most residential compressors. Give us your condenser model number or the compressor’s RLA (rated load amps) and LRA (locked rotor amps) from the nameplate, and we’ll match the right kit to your system.
