0130F00010 – FLAME SENSOR (GOODMAN, FACTORY)
$22.54Goodman 0130F00010 flame sensor, factory OEM part. Fits Goodman and Amana furnaces including GMS80805CN and GMVC80805CN series. Also replaces B1172606.
Need help finding the right part?
We test parts at the counter and match the right replacement. Walk in or call ahead.
Showing all 19 results
-
-

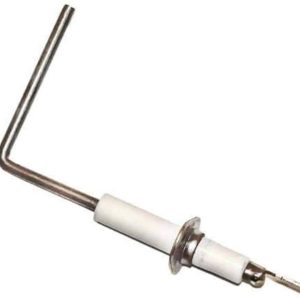

10735201 – FLAME SENSOR (AMANA)
$22.86Amana 10735201 flame sensor with 90-degree bend and single mounting hole. Fits Amana, Goodman, and Janitrol furnace models. OEM replacement part.
-
18G89 – FLAME SENSOR (LENNOX)
$23.17Lennox 18G89 flame sensor for Lennox and Armstrong furnaces. OEM replacement with straight probe design. Also cross-references RS36453B001.
-
20467101 – FLAME SENSOR (52M72)
$32.39Lennox 52M72 flame sensor (part 20467101). Genuine OEM replacement for Lennox furnaces. Detects burner flame to keep your furnace running safely.
-
22236 – THERMOCOUPLE (36″)
$15.9836-inch universal thermocouple for gas furnaces and water heaters. Stainless steel with universal adapter fittings. Fits most standing-pilot gas appliances.
-

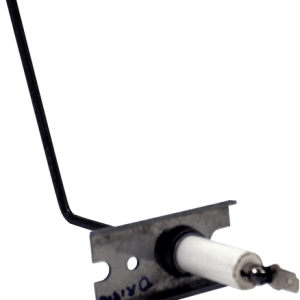

51M14 – FLAME SENSOR (LENNOX, AFTERMARKET, DIRECT, FLS51M14)
$23.18Lennox 51M14 flame sensor, single-prong design. Aftermarket direct replacement for multiple Lennox furnace models. Also listed as FLS51M14.
-
52W29 – FLAME SENSOR (LENNOX, AFTERMARKET, DIRECT, FLS52W29)
$23.18Lennox 52W29 flame sensor kit with straight probe. Aftermarket direct replacement for Lennox furnaces. Also listed as FLS52W29.
-
62-23543-01 – FLAME SENSOR (RHEEM)
$20.87Rheem 62-23543-01 flame sensor replacement. Fits Rheem and Ruud furnace models including RGPH and UGPH series. Aftermarket direct fit, listed as FLS301.
-
62-24044-71 – FLAME SENSOR RETROFIT KIT (RHEEM)
$66.81Rheem 62-24044-71 non-integrated flame sensor retrofit kit. Upgrades older Rheem/Ruud furnaces to a standalone flame sensor. OEM kit with all hardware included.
-
632484R – FLAME SENSOR (NORTEK)
$43.99Nortek 632484R flame sensor for Nortek and Broan furnaces. OEM replacement part. Also fits Intertherm, Miller, and Nordyne branded units.
-
69W43 – FLAME SENSOR (LENNOX, AFTERMARKET, DIRECT, 790-801A1)
$34.12Lennox 69W43 flame sensor replacement with 90-degree bend. Direct aftermarket fit for Lennox furnaces. Also listed as 790-801A1 and 102431-02. Single-prong Kanthal rod.
-
903600 – FLAME SENSOR (NORTEK)
$36.07Nortek 903600 OEM flame sensor for Nortek and Broan furnaces. Replaces older part number 632396. Ceramic insulator with stainless steel sensing rod.
-
LH680534 – FLAME SENSOR (CARRIER, AFTERMARKET, DIRECT, FLS014)
$23.44Carrier flame sensor replacement (LH680534). Aftermarket direct fit with 73-degree bend and Kanthal rod. Replaces LH33WZ515, LH33WZ517, LH33WZ521, and more.
-
PFS097 – FLAME SENSOR (LENNOX, 28M97)
$22.60Lennox 28M97 flame sensor replacement. Aftermarket direct fit for Lennox, Armstrong, and Ducane furnaces. Single-prong design with ceramic insulator.
-
S1-02527773700 – FLAME SENSOR (YORK, AFTERMARKET, DIRECT, FLS700)
$23.44York flame sensor replacement (S1-02527773700). Aftermarket direct fit with 4-inch probe and Kanthal rod. Fits York, Coleman, and Luxaire furnaces.
-

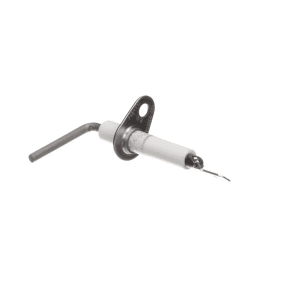

S1-02530801000 – FLAME SENSOR (YORK)
$61.56York S1-02530801000 OEM flame sensor for York, Coleman, and Luxaire furnaces. Factory original part with ceramic insulator and stainless rod.
-
SEN01114 – FLAME SENSOR (TRANE)
$22.12Trane flame sensor, direct OEM replacement. Fits multiple Trane/American Standard furnace models. Replaces SEN0337, SEN0441, SEN0491. Stainless steel rod with ceramic insulator.
-
TH198018 – THERMOCOUPLE (18″)
$15.2818-inch universal thermocouple for gas furnaces and water heaters. Stainless steel with universal adapter fittings. Fits most standing-pilot gas appliances.
-
TH198024 – THERMOCOUPLE (24″)
$15.2824-inch universal thermocouple for gas furnaces and water heaters. Stainless steel with universal adapter fittings. Most common thermocouple length for residential systems.
Signs You May Need a New Flame Sensor
The flame sensor is a small metal rod inside your gas furnace that confirms a flame is present after the gas valve opens. When it's dirty or failed, the furnace shuts down as a safety precaution.
Furnace Lights Then Shuts Off After a Few Seconds▼
- The burners ignite, run for 3–8 seconds, then the flame goes out.
- The furnace may attempt this cycle 2–3 times before locking out.
- This is the #1 most common flame sensor symptom.
Tip: Before replacing the flame sensor, try cleaning it with fine sandpaper or steel wool. A dirty sensor is the most common furnace repair — and it's free to fix.
Furnace Short-Cycles Repeatedly▼
- The furnace starts and stops repeatedly over a short period.
- Each cycle may get shorter as the control board counts failed attempts.
- After 3 failed attempts, most furnaces will lock out for 1–3 hours.
Flashing Error Code on the Control Board▼
- The LED on your furnace control board is blinking a specific pattern.
- Common codes: "flame sensed without call for heat" or "no flame detected."
- Check the label inside your furnace door for the code chart.
Furnace Won't Ignite at All▼
- After multiple lockout cycles, the furnace may stop attempting to light.
- You'll need to reset the furnace (turn power off/on) or wait for the lockout timer.
- If cleaning doesn't fix it, the sensor rod itself may be cracked or worn out.
Not sure which part you need? Bring your old part to our Dallas store — our team will test it for free and help you find the right replacement.
