0130F00010 – FLAME SENSOR (GOODMAN, FACTORY)
$22.54Goodman 0130F00010 flame sensor, factory OEM part. Fits Goodman and Amana furnaces including GMS80805CN and GMVC80805CN series. Also replaces B1172606.
Showing all 43 results
-
-
0130F00038S – AUTO LIMIT SWITCH (MICRO, LARGE BASE, L120°)
$19.64Goodman/Amana 0130F00038S auto reset limit switch, opens at 120°F. Large base, micro size. Direct OEM replacement — also crosses to B13701-13 and L45-224.
-
0130F00504 – FURNACE PRESSURE SWITCH (-0.60PF)
$37.04Goodman 0130F00504 furnace pressure switch, -0.60″ WC. OEM replacement for Goodman and Amana furnaces. Also cross-references B1370142.
-
0130F00505 – FURNACE PRESSURE SWITCH (-0.70PF)
$36.49Goodman 0130F00505 furnace pressure switch, -0.70″ WC. Fits Goodman GMS80905CN series and others. Also replaces B1370158, 10727923, and 632432R.
-
0130F00508 – FURNACE DUAL PRESSURE SWITCH (-0.55 PF & -0.30 PF)
$53.18Goodman 0130F00508 dual furnace pressure switch, -0.55″ and -0.30″ WC. Two-stage switch for Goodman, Amana, and Janitrol furnaces with two-stage inducer motors.
-
0130M00243 – DOOR INTERLOCK SWITCH (GOODMAN)
$19.40Goodman 0130M00243 furnace door safety switch. Kills power when the access panel is removed. OEM replacement for multiple Goodman/Amana furnace models.
-
0131M00002PSP – DRAFT INDUCER MOTOR (GOODMAN)
$185.56Goodman OEM draft inducer motor. 115V, 3000 RPM. Replaces B4059001, B4059003, and 119276-00SP. Fits GMS80905CN and other Goodman 80% furnaces.
-
0151R00071SP – REVERSING VALVE W/ SOLENOID COIL & DRIER (7/8″ x 1/2″)
$160.58Goodman reversing valve with 24V solenoid coil and bi-flow filter drier. 7/8″ x 1/2″ connections. Complete assembly for heat pump systems.
-
10625738S – FAN BLADE (3, 26″, 20°, CCW, HUB ON INTAKE)
$164.55Goodman 10625738S condenser fan blade. 26″ diameter, 3-blade, 20-degree pitch, CCW rotation, hub on intake side. Direct OEM replacement.
-
20044403 – DRAFT INDUCER MOTOR ASSEMBLY (AMANA)
$213.25Amana OEM draft inducer motor assembly. Includes motor, housing, and wheel. Replaces 20044403. Complete drop-in assembly for Amana furnaces.
-
4053501S – DRAFT INDUCER VENT KIT
$27.51Goodman 4053501S draft inducer vent kit. Includes the vent pipe and fittings for the inducer motor assembly. Use when replacing the inducer or repairing the exhaust vent connection.
-
B1086775SP – FAN BLADE (3, 22″, 25°, CCW, HUB ON INTAKE)
$108.69Goodman B1086775SP condenser fan blade — 22″, 3-blade, 25° pitch, CCW rotation, hub on intake side. OEM replacement for Goodman and Amana condensers.
-
B1225017 – SOLENOID COIL (5 WATT, GOODMAN)
$34.39Goodman B1225017 reversing valve solenoid coil, 24V, 5 watt. Controls the reversing valve on Goodman/Amana heat pump systems to switch between heating and cooling.
-
B1225022S – SOLENOID COIL
$39.43Goodman B1225022S reversing valve solenoid coil, 24VAC, 50/60Hz, 5/4 watt. Controls the reversing valve on Goodman/Amana heat pump systems.
-
B1368016S – BLOWER WHEEL (10″ x 8″, CW, CONVEX)
$107.3110″ x 8″ clockwise blower wheel with convex blades and 1/2″ bore. OEM Goodman part. Also replaces Morrison BW43016 and Carrier LA22LA014/LA22LA015.
-
B1368034S – BLOWER WHEEL (10″ x 6″, CW, CONVEX)
$82.9610″ x 6″ clockwise blower wheel with convex blades and 1/2″ bore. OEM Goodman part. Replaces Carrier LA22RA101 and Lennox WHL00740.
-
B1368048S – BLOWER WHEEL (10″ x 10″, CCW, CONCAVE)
$114.9910″ x 10″ counter-clockwise blower wheel with concave blades and 1/2″ bore. OEM Goodman part. Replaces Rheem 70-23110-30.
-
B1370115 – HEAT KIT LIMIT SWITCH (L150°)
$23.64Goodman B1370115 heat kit limit switch, opens at 150°F. Protects electric heat strips in Goodman/Amana air handlers from overheating. OEM replacement part.
-
B1370126 – FURNACE PRESSURE SWITCH (-0.40PF)
$49.06Goodman B1370126 furnace pressure switch, -0.40″ WC. OEM replacement for Goodman furnaces. Also replaces 20055506 and R102614-01.
-
B1370133 – FURNACE PRESSURE SWITCH (-0.35PR)
$49.06Goodman B1370133 furnace pressure switch, -0.35″ WC. OEM replacement for Goodman gas furnaces. Monitors inducer draft for safe ignition.
-
B1370819 – DOOR INTERLOCK SWITCH (GOODMAN)
$23.94Goodman B1370819 furnace door safety switch. Kills power when the furnace access panel is removed. Prevents the blower and burner from running during maintenance.
-
B1376851 – MOTOR BELLY BAND
$12.86Goodman B1376851 motor belly band. Wraps around the blower motor to hold it in place inside the blower housing. OEM Goodman/Amana part.
-
B1376857 – MOTOR ARMS (SET OF 3)
$27.75Goodman B1376857 motor mount arms, set of 3. OEM replacement for Goodman and Amana furnaces and air handlers. Secures the blower motor in the housing.
-
B1789852 – FLOWRATER PISTON (.052) (1.5T, R410A)
$14.82Goodman .052″ fixed orifice piston for 1.5-ton systems (R-410A). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789855 – FLOWRATER PISTON (.055) (2T, R410A) (1.5T, R22)
$14.82Goodman .055″ fixed orifice piston for 2-ton R-410A / 1.5-ton R-22 systems (R-410A and R-22). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789859 – FLOWRATER PISTON (.059) (2T, R22)
$14.29Goodman .059″ fixed orifice piston for 2-ton R-22 / 2.5-ton R-410A systems (R-22 and R-410A). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789865 – FLOWRATER PISTON (.065) (2.5T, R410A) (2.5T, R22)
$16.88Goodman .065″ fixed orifice piston for 2.5-ton systems (R-410A and R-22). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789868 – FLOWRATER PISTON (.068) (3T, R410A)
$14.29Goodman .068″ fixed orifice piston for 3-ton systems (R-410A). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789871 – FLOWRATER PISTON (.071) (3.5T, R410A)
$14.29Goodman .071″ fixed orifice piston for 3.5-ton systems (R-410A). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789878 – FLOWRATER PISTON (.078) (4T, R410A) (3.5, R22)
$14.29Goodman .078″ fixed orifice piston for 4-ton R-410A / 3.5-ton R-22 systems (R-410A and R-22). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1789882 – FLOWRATER PISTON (.082) (4T, R22)
$14.29Goodman .082″ fixed orifice piston for 4-ton systems (R-22). Controls refrigerant flow in Goodman and Amana condensers. OEM part.
-
B1796630 – PISTON FITTING
$15.65Goodman B1796630 / BT1369063 90-degree stub elbow fitting. Connects the piston assembly to the refrigerant line. OEM Goodman/Amana part.
-
B1796632 – PISTON NUT & TEFLON SEAL
$12.66Goodman B1796632 piston nut and Teflon seal. Secures the piston in the refrigerant line and prevents leaks. OEM Goodman/Amana replacement.
-
B1859005 – INDUCER MOTOR (GOODMAN, AFTERMARKET DIRECT, FB-RFB859)
$155.12Aftermarket inducer motor for Goodman furnaces. 115V, 3000 RPM, 1/40 HP. Replaces B1859005. Complete assembly with motor, wheel, housing, and gasket.
-
B4059000S – INDUCER ASSEMBLY (GOODMAN, AFTERMARKET, DIRECT, FB-RFB405)
$167.43Aftermarket inducer assembly for Goodman furnaces. 115V, 3000 RPM, 1/40 HP. Replaces B4059000S. Complete assembly with motor, wheel, housing, and gasket.
-
D6723311S – BLOWER WHEEL (11×10, CW, CONVEX)
$137.2211″ x 10″ clockwise blower wheel with convex blades and 1/2″ bore. OEM Goodman part. Also replaces B1368000S and Carrier LA22ZA127.
-

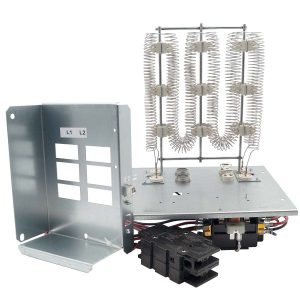

HKTSD10X1 – HEAT KIT (10 KW, 81-0629-01)
Call for PriceGoodman 10 kW electric heat kit with built-in circuit breaker. Part #HKSC10XC / HKTSD10X1. Supplemental or emergency heat for Goodman/Amana air handlers.
-
MML300 – MANUAL LIMIT SWITCH (MICRO, L300°)
$16.26Manual reset micro rollout limit switch, opens at 300°F. Crosses to Goodman B1370145 and York S1-026-34027-000. Fits Goodman, Amana, and York furnaces.
-
PCBBF163S – CONTROL BOARD (GM9S)
$187.44Goodman PCBBF163S control board for GM9S series furnaces. OEM replacement. Also fits Daikin DM80SN models. Manages ignition, blower, and safety functions.
-
PCBDM101S – DEFROST CONTROL
$93.97Goodman PCBDM101S defrost control board for heat pumps. Manages defrost cycles on Goodman and Amana heat pump systems. OEM replacement.
-
PCBDM133S – DEFROST CONTROL BOARD
$93.80Goodman PCBDM133S defrost control board for heat pumps. Replaces PCBDM160 and PCBDM161. Manages defrost timing on Goodman and Amana heat pumps.
-
PCBFM103S – CONTROL BOARD (GOODMAN, AH)
$73.55Goodman PCBFM103S fan blower control board with time delay. Direct replacement for PCBFM131S and B1370735. Fits Goodman and Amana air handlers.
-
RF000129 – CONTROL BOARD
$207.60Goodman RF000129 control board. OEM replacement managing ignition and flame monitoring. Replaces PCBBF117, 50A55-288, and older revisions.
